CONDTROL XP3 Green Laser distance meters
warranty
invoice
returns
in Germany
Goes with it 3
In use
What it can do
Comparison
| XP3 Green | ||
|---|---|---|
| Key figures | ||
| Range | 120 m | 100 m |
| Measuring accuracy | ±1,5 mm | ±1,5 mm |
| Dust and water protection | IP54 | IP54 |
| Power supply | 3 × Ni-MH 1.2 V 800 mAh | Li-ion 3.7 V 850 mAh |
| Tripod thread | 1/4" | 1/4" |
| Functions | ||
| Digital camera | ||
| Touch screen display | ||
| Bluetooth | ||
| Tilt measurements | ||
| Fold-out end piece | ||
| Memory | ||
| Timer | ||
| Spirit level | ||
| Min/max tracking | ||
| Area/volume | ||
| Add/subtract | ||
| Pythagoras | ||
| Wall area | ||
| Point-to-point measurement | ||
| Stake-out function | ||
| Length of inclined objects | ||
| Height from tilt measurement | ||
| Length of roof slopes | ||
| Dimensions in the photo | ||
n/a = not specified

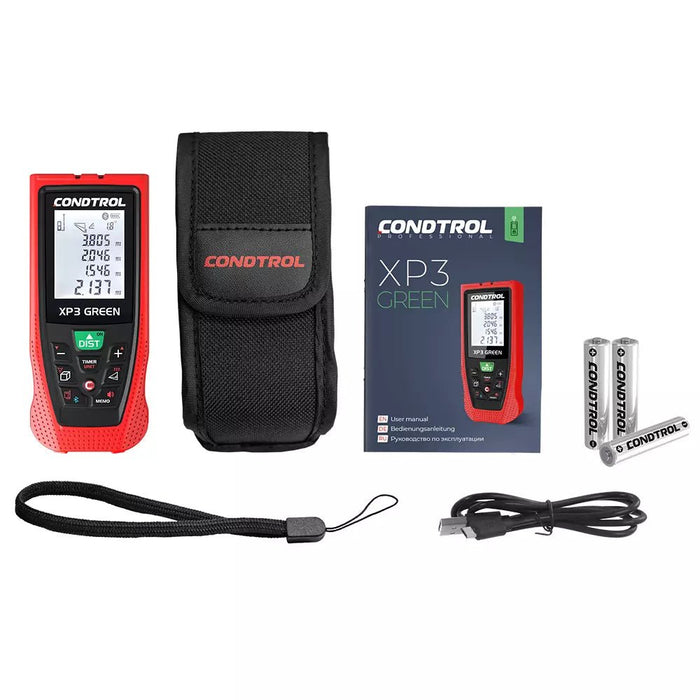

In the box
- CONDTROL XP3 Green
- Protective bag
- Wrist strap
- Micro USB cable
- User manual
App
CONDTROL Smart Measure
iOS · Android · FreeMeasurements via Bluetooth to your smartphone – sketches, photos with dimensions, export as PDF/DXF
- Photo sketches with dimensions
- Export of measurements
- Sharing with the team
Details
Frequently asked questions
Was sind die optischen Eigenschaften des Lasers, einschließlich Strahlform und Leistung?
Lasertyp Laserklasse II, 520 nm, Leistung <1 mW For those interested in the detailed optical characteristics of the laser, here’s a closer look:
Beam Shape: The laser emits a precise "Dot" beam shape, ideal for pinpoint accuracy in applications.
Optical Power: Operating at a power level of 1 mW, it ensures efficient performance while maintaining safety standards.
Laser Class: As a Class 2 laser, it’s designed for safe use in various environments, with minimal risk under standard operational conditions.
Divergence: The beam divergence is H - 1.0 mrad, providing a focused beam that maintains its integrity over distance.
Size of Laserdot: At a distance of 2 meters, the laser dot remains under 4mm, perfect for tasks requiring fine precision.
Optics: Equipped with an acryl lens, the laser delivers clear and consistent optical quality.
Laser Technology: Utilizing advanced diode technology, it combines reliability with cutting-edge performance.
Focus: The laser features a fixed focus at 2000mm, ensuring optimal clarity and minimal adjustment needs for long-range applications.
This comprehensive overview ensures you have all the necessary information to understand the laser's capabilities and suitability for your specific needs.
Technical data
- Measuring range
- 0.05–120 m
- Accuracy
- ±1.5 mm
- Measuring from
- Bottom edge, end piece, top edge, tripod
- Memory
- Bluetooth
- Inclinometer
- Laser type
- Laser class II, 520 nm, < 1 mW

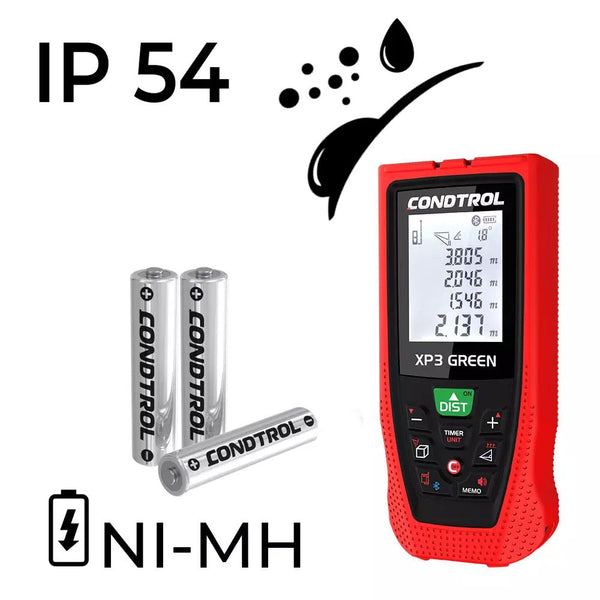

- IP protection
- IP54
- Power supply
- 3 × AAA rechargeable 1.2 V 800 mAh Ni-MH
- Operating temperature
- 0 … +40 °C
- Storage temperature
- −20 … +60 °C
- Dimensions
- 136 × 59 × 28 mm
- Weight
- 170 g
From our guides

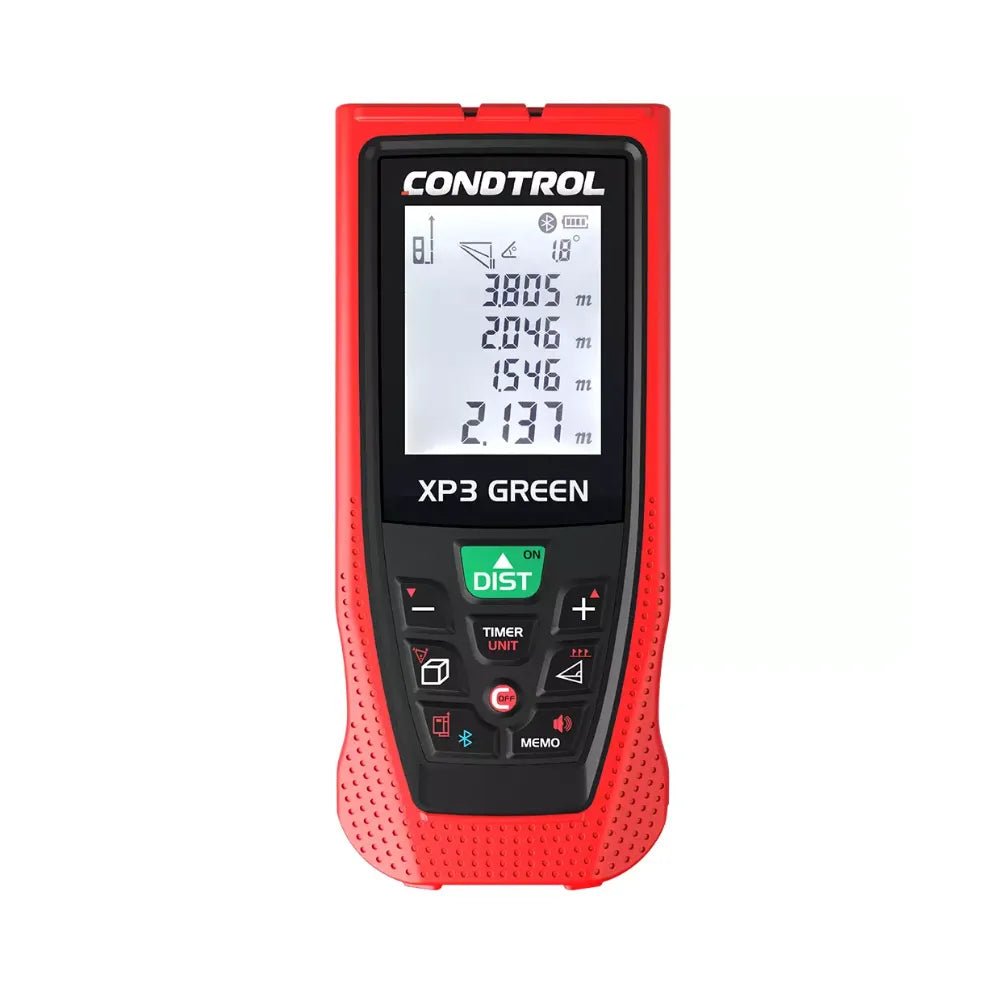

The CONDTROL XP3 Green is a laser distance meter with a green laser for indoor and outdoor measurement. It measures from 0.05 to 120 m with a stated typical accuracy of ±1.5 mm, is IP54-protected and transfers readings via Bluetooth to the CONDTROL Smart Measure app.
What measuring tasks is the XP3 Green suitable for?
The green laser dot (520 nm) is much easier for the human eye to see in bright ambient light than a red one. This helps with aiming on light-coloured walls, in bright rooms and over longer distances. In direct sunlight and at long distances, a target plate still makes sense.
Point-to-point measurement

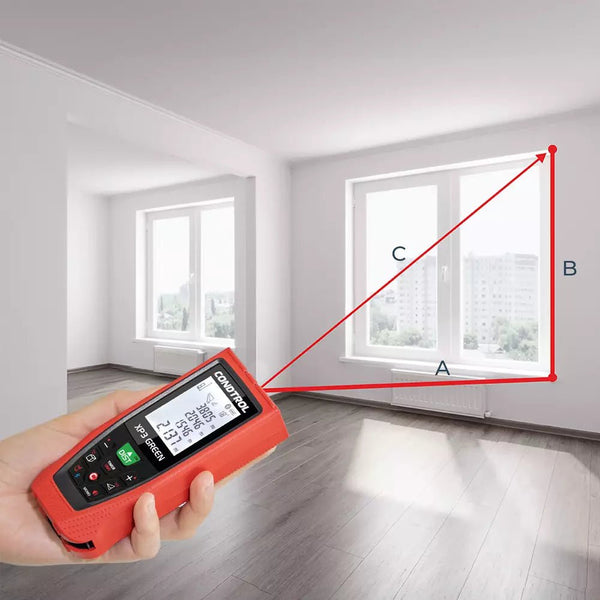

The integrated 3D sensor calculates the distance between two points from two individual measurements, without you having to sight the distance itself. Both points must be visible from your position; the tool does not measure through walls or trees.
Tilt sensor
Using the tilt angle, the XP3 Green determines horizontal and vertical distances indirectly, for example the height of a façade or the horizontal distance over uneven terrain. According to the manual, the tilt sensor works within a range of 90° with a tolerance of ±0.3° to the housing.
Measuring functions at a glance
- Single and continuous measurement (tracking) with min/max value
- Area and volume calculation, addition and subtraction
- Indirect measurement by Pythagoras and via the tilt sensor
- Point-to-point measurement
- Memory and Bluetooth transfer to the CONDTROL Smart Measure app

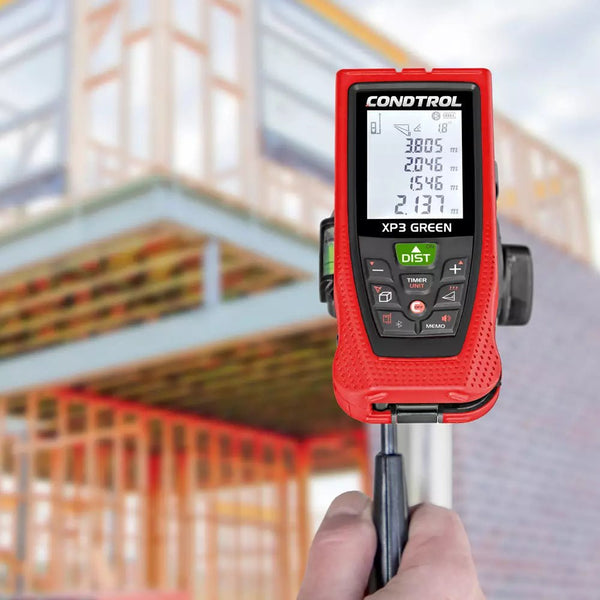

- Selectable reference point, 1/4″ tripod thread for steady measurement series from a tripod

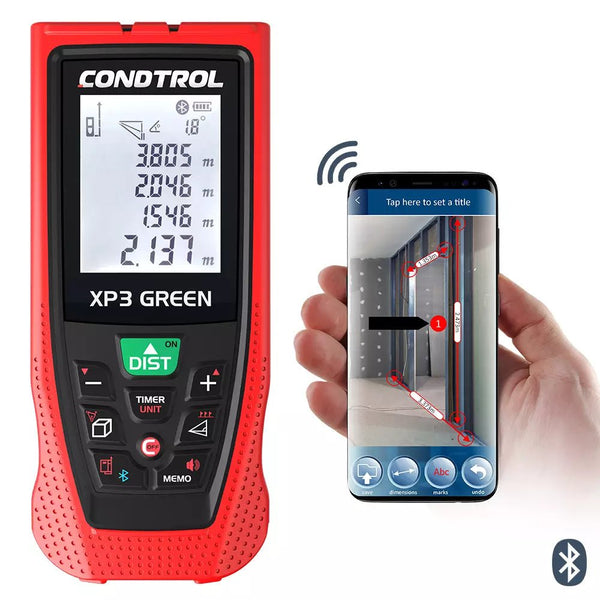

In the Smart Measure app you can save readings, add dimensions to photos, create floor plan sketches and export files.
Understanding range and accuracy
Even a green laser is harder to detect on shiny, transparent or poorly reflecting surfaces. The nominal range of 120 m is not a promise for every target; in daylight a target plate helps. The tool does not have a digital viewfinder. IP54 describes protection against dust and splash water; the tool is not waterproof.
Power supply and scope of delivery

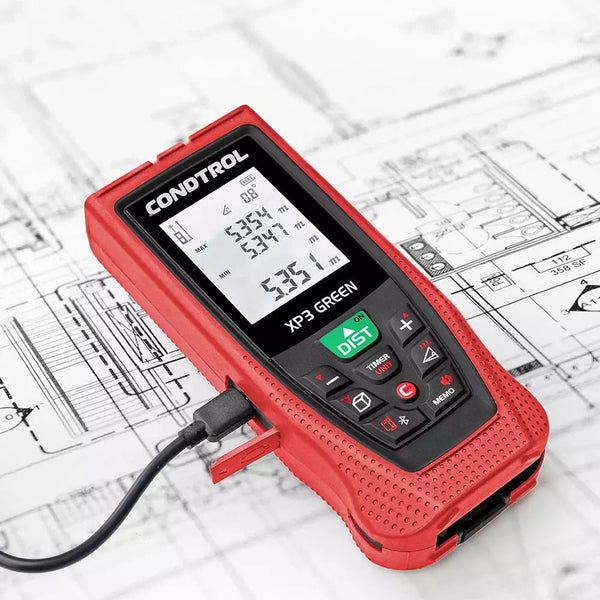

3 × AAA NiMH rechargeable batteries, 1.2 V / 800 mAh; according to the manual, a full charge takes about 4 hours.
Laser distance meter, protective pouch with loop, 3 AAA rechargeable batteries, USB charger and user manual, as stated in the manual.
Warranty
2 years' warranty; one additional year after registration in accordance with the warranty terms.
Compare models and applications
Compare laser distance meters by task. For tasks where visibility is critical, with camera: models with digital viewfinder. For documentation: distance meters with Bluetooth.
