CONDTROL XLiner Quattro 360G Kit Cross-line lasers
warranty
invoice
returns
in Germany
Goes with it 2
H160
€32,90
In use
What it can do
Comparison
| XLiner Quattro 360G | ||
|---|---|---|
| Key figures | ||
| Range / with receiver | 60 m / 100 m | 60 m / 100 m |
| Accuracy | ±0,2 mm/m | ±0,2 mm/m |
| Laser lines | 2 × 360° (horizontal / vertical) + plumb point | 360° + 2 vertical |
| Laser colour | Green | Green |
| Self-levelling range | ±3,5° | ±3,5° |
| Dust and water protection | IP54 | IP54 |
| Power supply | Li-ion 7.4 V 2600 mAh | Li-ion 7.4 V 2600 mAh |
| Tripod thread | 5/8" and 1/4" | 5/8" and 1/4" |
| Functions | ||
| Receiver mode | ||
| Tilt mode | ||
| Plumb points | ||
| Bluetooth / app | ||
| Remote control | k. A. | k. A. |
| Display | k. A. | k. A. |
| Digital tilt | k. A. | k. A. |
n/a = not specified

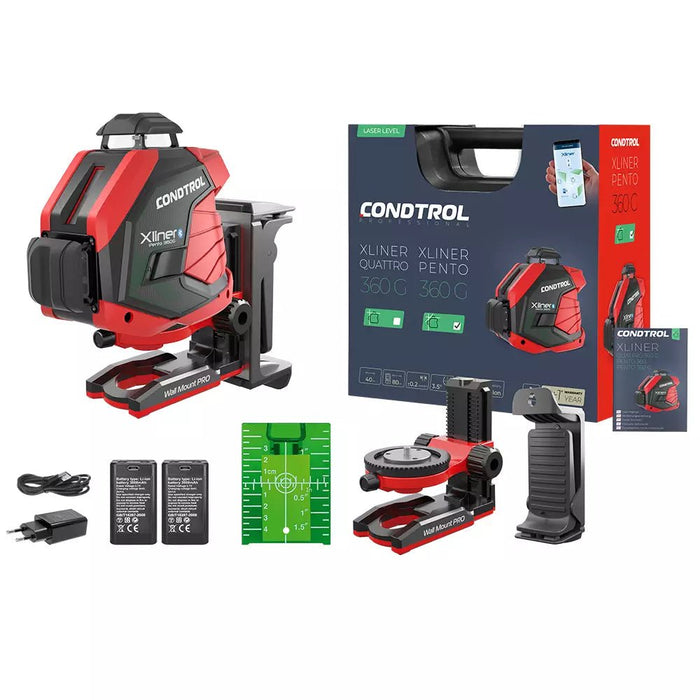

In the box
- CONDTROL XLiner Quattro 360G
- CONDTROL WallMount Pro
- Clamp mount
- magnetic target plate
- Protective case
- 2 × rechargeable batteries
- Charger
- User manual
App
CONDTROL XLiner Remote
iOS · Android · FreeSwitch planes, adjust brightness, activate pulse mode and check the battery level – via Bluetooth from your smartphone
- Switch planes on and off
- Adjust brightness
- Pulse mode for the receiver
Details
Technical data
- Range / with receiver
- 60/100 m
- Levelling accuracy
- ±0.2 mm/m
- Self-levelling range
- ± 3.5°
- Operating time
- > 8 hours
- IP protection
- IP54
- Tripod thread
- 5/8’’, 1/4”
- Laser type
- Class II 515 nm < 1 mW
- Power supply
- 7.4 V 2600 mAh Li-ion
- Operating temperature
- -10°C ... +50°C
- Storage temperature
- -20°C ... +70°C
- Dimensions
- 155x85x132 mm
- Weight
- 0.63 kg/0.73 kg (without/with battery)
From our guides

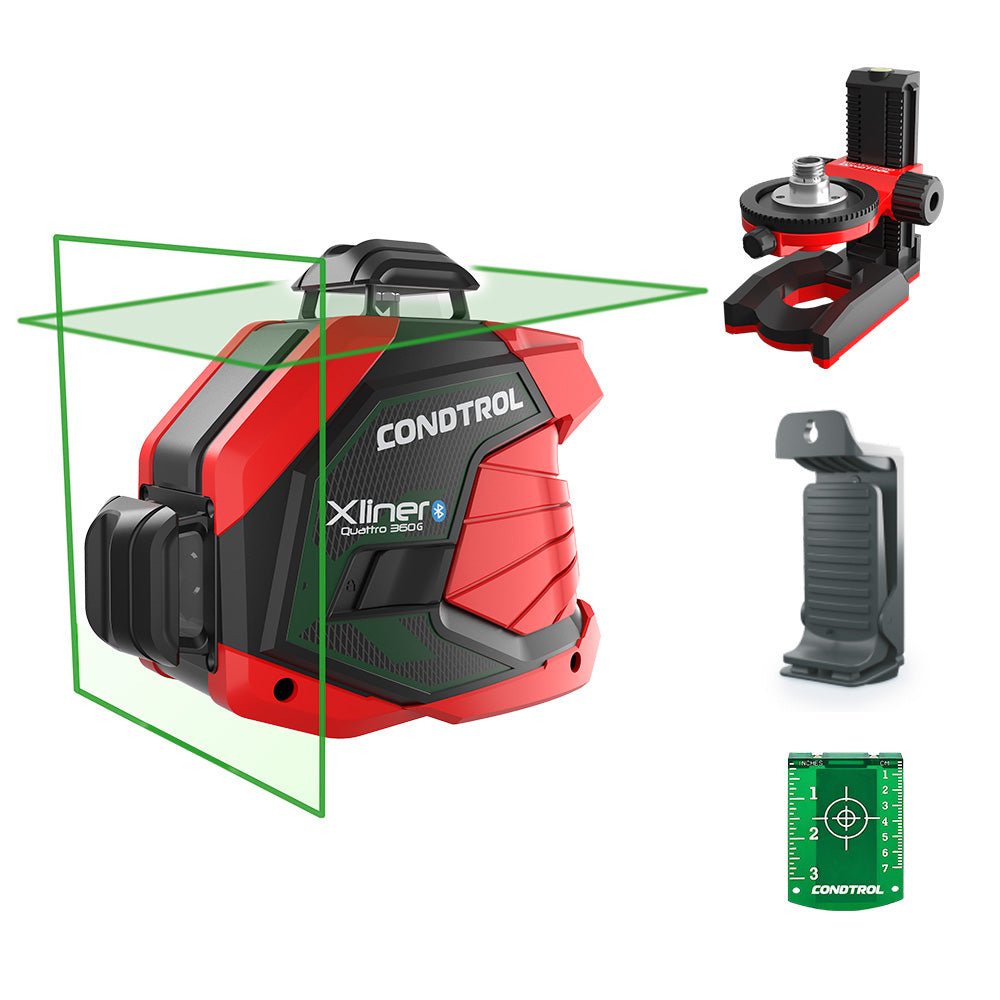

The CONDTROL XLiner Quattro 360G Kit is a green cross-line laser with two full 360° planes, horizontal and vertical, plus plumb points up and down and Bluetooth control. In the kit: wall bracket Wall Mount Pro, clamp holder, magnetic target plate, two rechargeable batteries and protective case.
What tasks is the XLiner Quattro 360G suitable for?

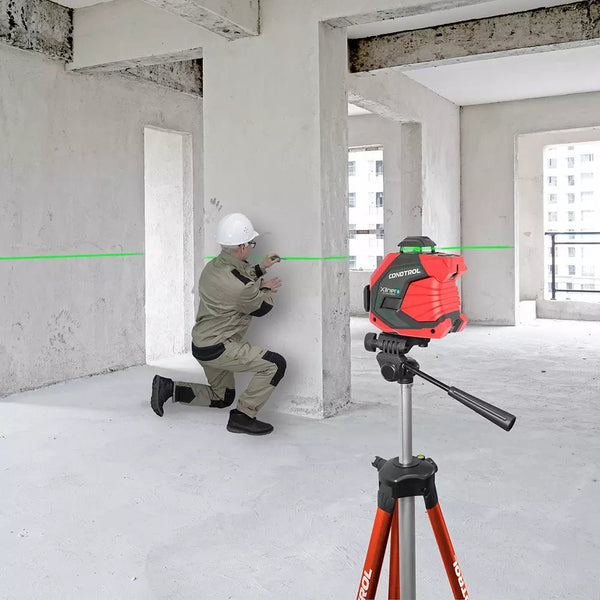

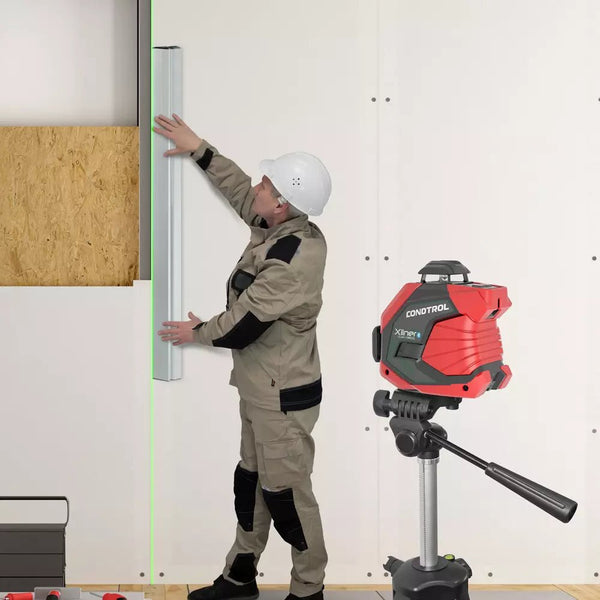

The horizontal and vertical planes each run all the way around the room. This lets you mark walls, floor and ceiling in one step without turning the laser: floor levelling, tiles and laminate, wallpapering, windows, doors and furniture, cable routing.
Remote control via app
Via Bluetooth and the free XLiner Remote app for smartphone and tablet, you switch planes and brightness from a distance.
Self-levelling, pendulum lock, plumb

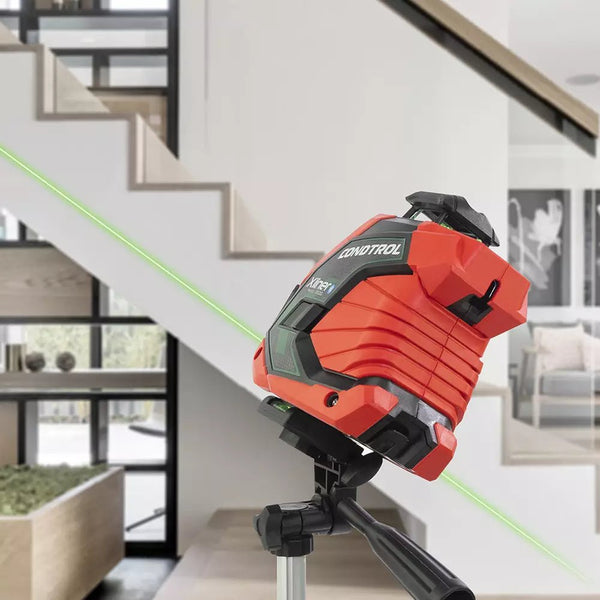

Self-levelling compensates up to ±3.5° and warns you when the laser is tilted too much. With the pendulum locked, you project lines at any angle, for example for stairs and roof slopes. The plumb points (zenith and nadir) transfer marks from the floor to the ceiling.

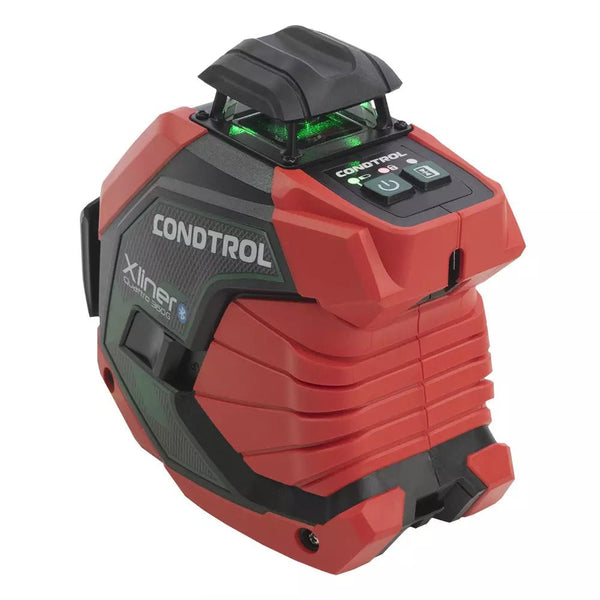

Robustly built
Metal housing, non-slip rubber coating and durable silicone buttons; protected against impacts, dust and splash water (IP54). Mounting via 1/4″ and 5/8″ or an eyelet for a screw or nail.
Functions at a glance
- Two 360° planes (horizontal and vertical), plumb points up and down
- Green laser 515 nm, accuracy ±0.2 mm/m, self-levelling ±3.5°
- Range 60 m, 100 m with receiver
- Bluetooth control via XLiner Remote, slope and pulse mode
- IP54, 1/4″ and 5/8″ tripod threads
Understanding range and accuracy
The visibility of the line depends on the ambient light and the surface; the target plate helps at a distance. In sunlight, work with a receiver. The accuracy applies within the self-levelling range of ±3.5°.
Power supply and scope of delivery
Two 7.4 V / 2600 mAh Li-ion batteries; according to the manual, more than 8 hours of continuous operation. While one is charging, you keep working with the second.
XLiner Quattro 360G, Wall Mount Pro, clamp holder, magnetic target plate, 2 rechargeable batteries, charger, protective case, user manual.
Warranty
2 years' warranty; one additional year after registration in accordance with the warranty terms.
Compare models and applications
Compare cross-line lasers with Bluetooth. With 360° horizontal and two verticals: XLiner Pento 360G Kit. Three 360° planes: 3D cross-line lasers.
