CONDTROL XLiner Pento 360G Kit Cross-line lasers
warranty
invoice
returns
in Germany
Goes with it 2
H160
€32,90
In use
What it can do

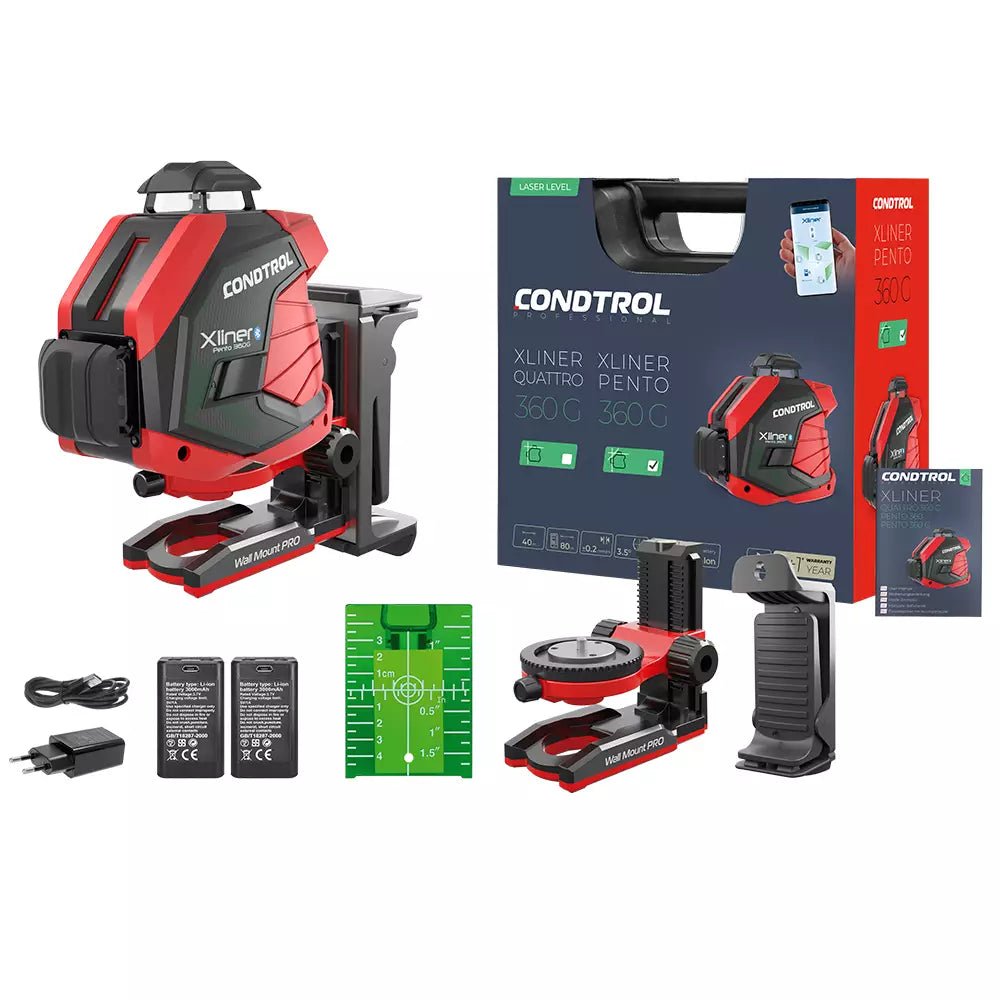

In the box
- CONDTROL XLiner Pento 360G
- CONDTROL WallMount Pro
- Clamp mount
- magnetic target plate
- Protective case
- 2 × rechargeable batteries
- Charger
- User manual
App
CONDTROL XLiner Remote
iOS · Android · FreeSwitch planes, adjust brightness, activate pulse mode and check the battery level – via Bluetooth from your smartphone
- Switch planes on and off
- Adjust brightness
- Pulse mode for the receiver
Details
Technical data
- Range / with receiver
- 60/100 m
- Levelling accuracy
- ±0.2 mm/m
- Self-levelling range
- ± 3.5°
- Operating time
- > 8 hours
- IP protection
- IP54
- Tripod thread
- 5/8’’, 1/4”
- Laser type
- Class II 515 nm < 1 mW
- Power supply
- 7.4 V 2600 mAh Li-ion
- Operating temperature
- -10°C ... +50°C
- Storage temperature
- -20°C ... +70°C
- Dimensions
- 155x85x132 mm
- Weight
- 0.63 kg/0.73 kg (without/with battery)
From our guides
The CONDTROL XLiner Pento 360G Kit is the green XLiner Pento 360G cross-line laser as a complete kit: with wall bracket Wall Mount Pro, clamp holder and magnetic target plate in a protective case. 360° horizontal, two vertical planes, plumb points up and down and Bluetooth control.
What tasks is the Pento 360G Kit suitable for?

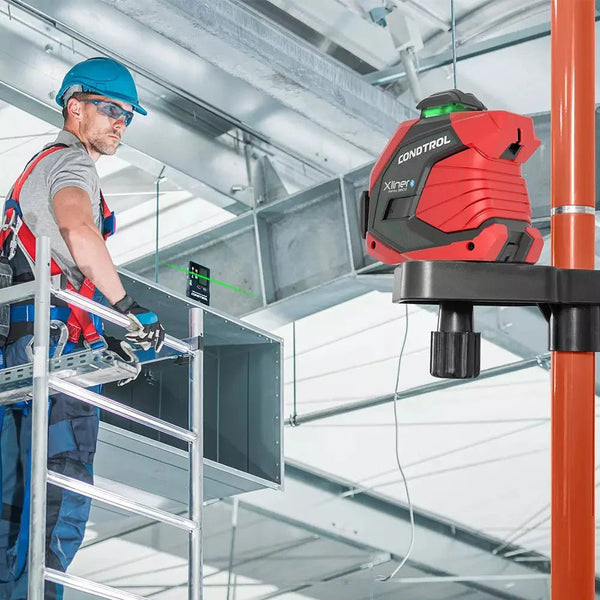

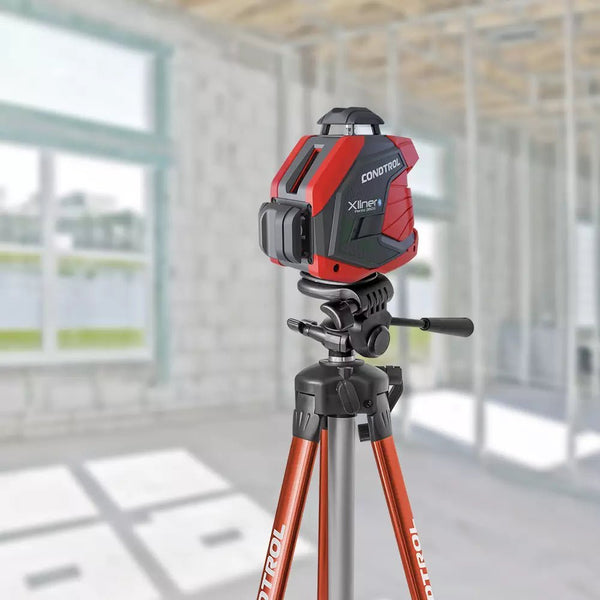

For anyone who mounts the laser on a wall, profile or batten rather than just on a tripod: drywall, suspended ceilings, tiles, doors and windows, furniture and appliance installation, cable routing. The target plate makes the line easier to see over longer distances.

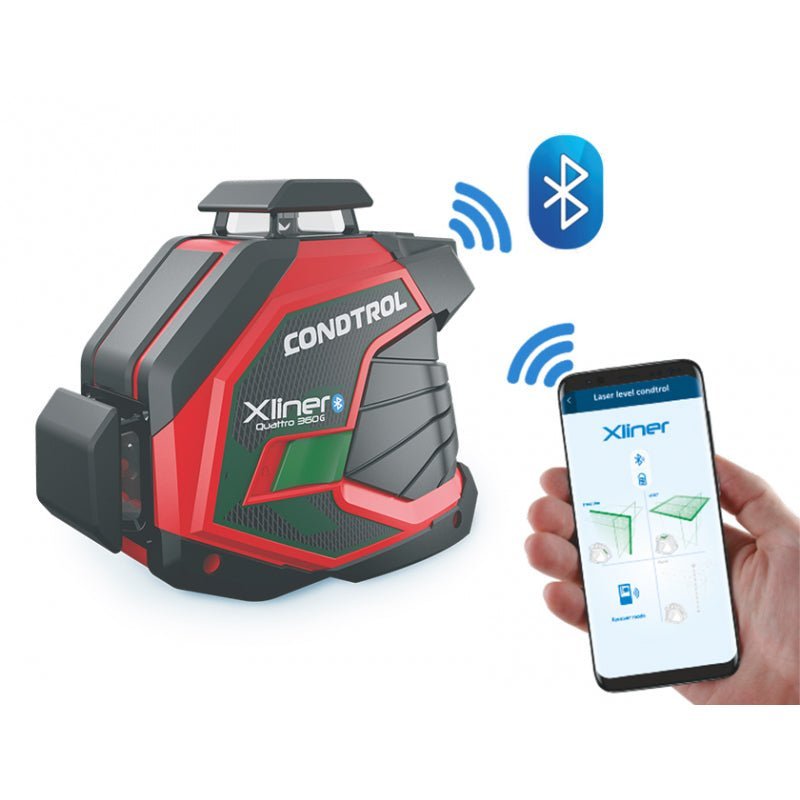

Remote control via app
With the free XLiner Remote app you switch planes and brightness from a distance, without walking to the laser and moving it.
Plumb points and slope mode

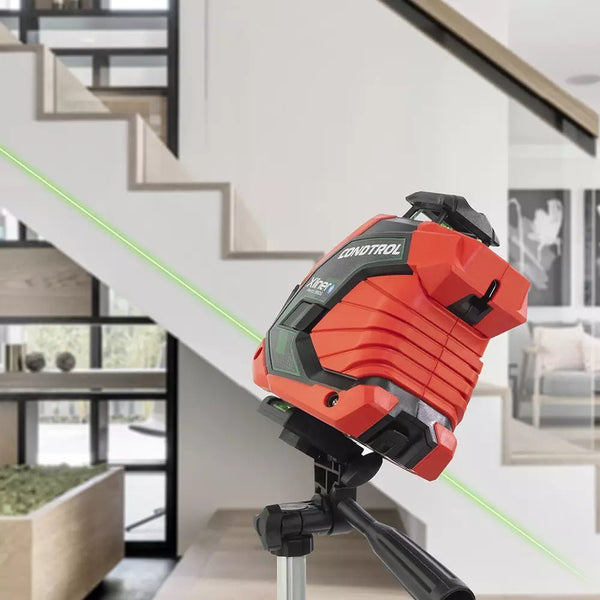

The plumb points (zenith and nadir) transfer marks from the floor to the ceiling, for example for lights or stairs. In slope mode, the laser projects lines at any chosen angle, for decoration, slopes and floor markings.

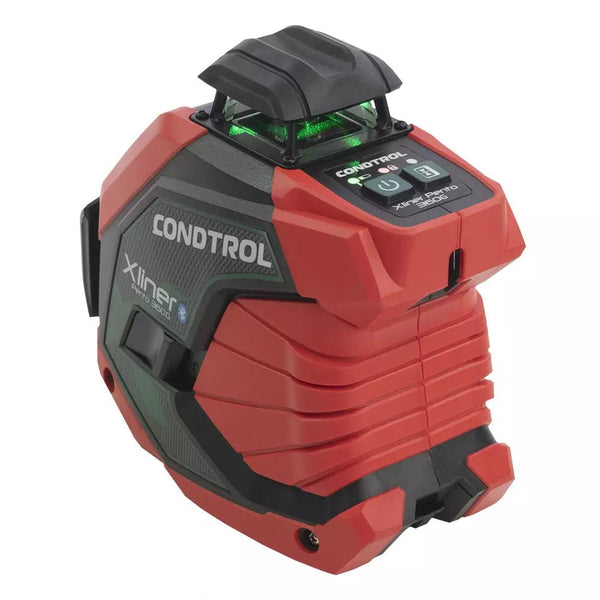

Robustly built
Metal housing, non-slip rubber coating and durable silicone buttons; protected against impacts, dust and splash water (IP54). Mounting via 1/4″ and 5/8″ or an eyelet for a screw or nail.
Functions at a glance

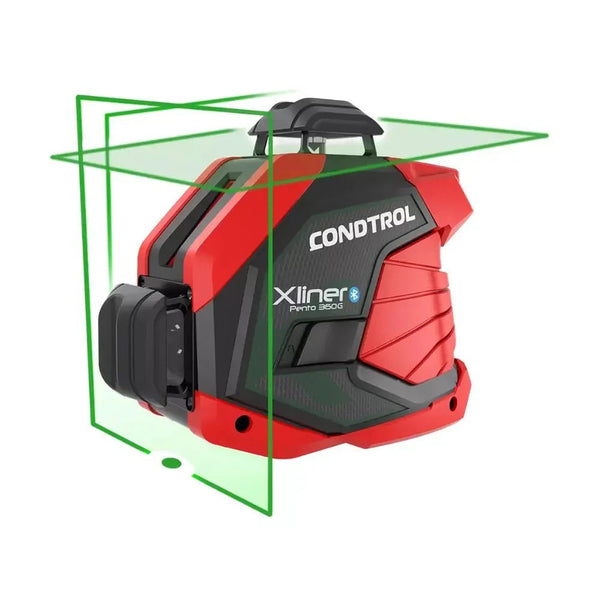

- 360° horizontal, two vertical planes, plumb points up and down
- Green laser 515 nm, clearly visible even in bright light
- Accuracy ±0.2 mm/m, self-levelling ±3.5°
- Range 60 m, 100 m with receiver
- Bluetooth control via XLiner Remote, slope and pulse mode
Understanding range and accuracy
The visibility of the line depends on the ambient light and the surface. In sunlight and over long distances, work in pulse mode with a receiver. The accuracy applies within the self-levelling range of ±3.5°.
Power supply and scope of delivery
Two 7.4 V / 2600 mAh Li-ion batteries; according to the manual, more than 8 hours of continuous operation, charging time about 3 hours. While one is charging, you keep working with the second.
XLiner Pento 360G, Wall Mount Pro, clamp holder, magnetic target plate, 2 rechargeable batteries, charger, protective case, user manual.
Warranty
2 years' warranty; one additional year after registration in accordance with the warranty terms.
Compare models and applications
Compare cross-line laser kits. Tool only: XLiner Pento 360G. With two full 360° planes: XLiner Quattro 360G Kit.
