€829,90
Veaceslav MoraruVerified purchase

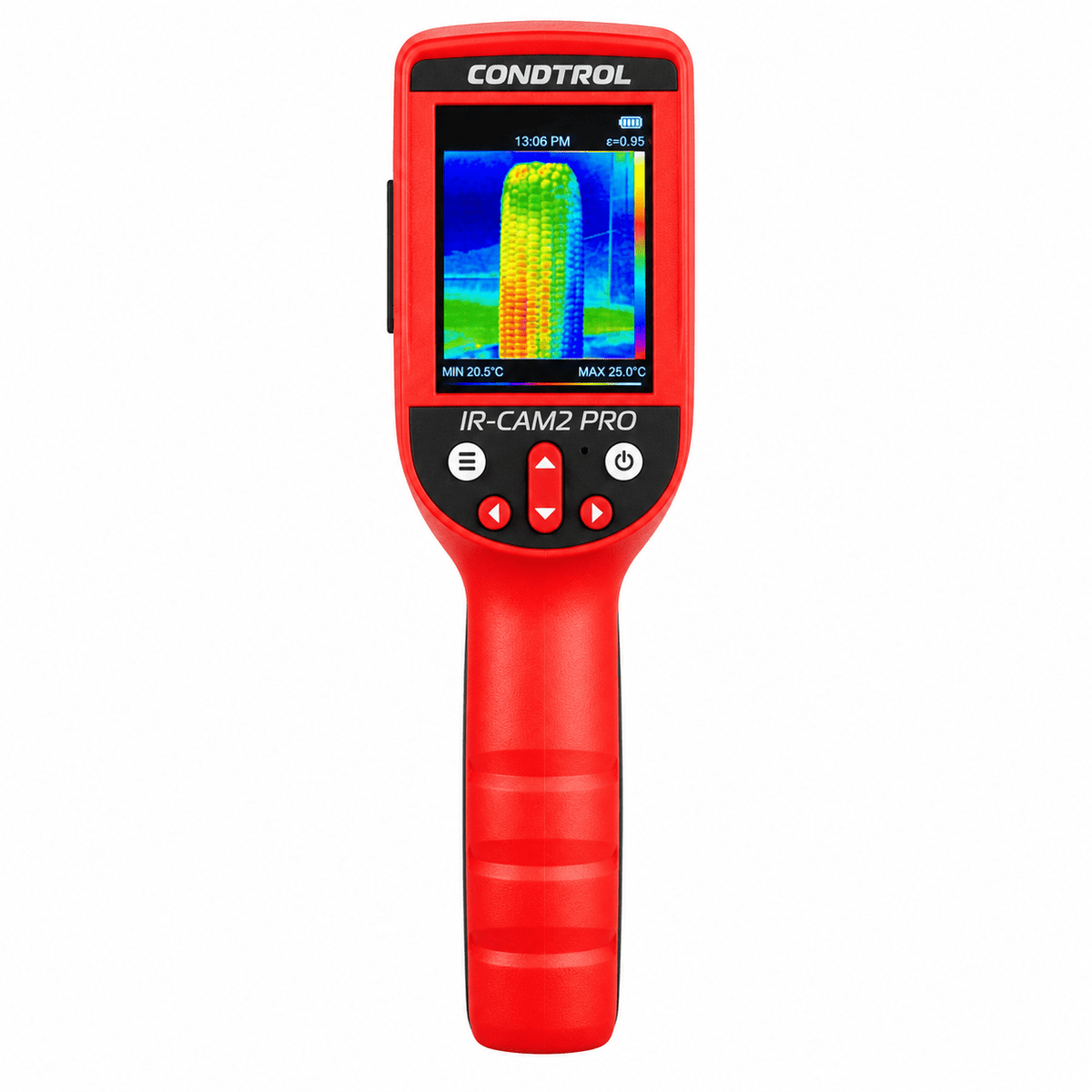

CONDTROL IR-Cam 2 Pro thermal imaging camera – 35,200 pixels & Wi-Fi
CONDTROL IR-Cam 2 Pro Thermal imaging camera
220 × 160 pxInfrared resolution
−10 … +330 °CMeasuring range
0.07 °CThermal sensitivity
1 GB + 64 GBMemory
€829,90€1.010,00incl. VAT
3–4 working days
2+1 years
warranty
warranty
Buy on
invoice
invoice
14-day
returns
returns
Service
in Germany
in Germany
Comparison
| IR-Cam 2 Pro | ||
|---|---|---|
| Key figures | ||
| Infrared resolution | 220 × 160 (35,200) pixels | 256 × 192 (49,152) pixels |
| Surface temperature range | −10 °C … +330 °C | −20 °C … +550 °C |
| Thermal sensitivity | 0,07 °C | <40 mK / <0,04 °C |
| Measuring accuracy | −10…100 °C: ±2 °C; 100…330 °C: ±2 % | ±2 % / ±2 °C |
| Emissivity | 0,1 … 1,0 | 0,01 … 1,0 |
| Field of view | 35,4° × 26,8° / 4 mm | 56° × 42° |
| Functions | ||
| Optical resolution | 56:1 | k. A. |
| Display | 2.8″ colour LCD with touch screen | 2.8″ LC display |
| Memory | 1 GB internal, external up to 64 GB | 16 GB microSD |
| Power supply | Li-ion 3.7 V 3200 mAh | Li-ion 3.6 V 5000 mAh |
| Battery life | 4 hours | approx. 11 hours |
| Dust and water protection | k. A. | IP54 |
| Tripod thread | 1/4″ | 1/4″ |
| Operating temperature | −10 °C … +50 °C | −10 °C … +50 °C |
| Dimensions | 220 × 69 × 70 mm | 230 × 72 × 95 mm |
| Weight | 260 g | 520 g |
n/a = not specified
In the box
- CONDTROL IR-Cam 2 Pro
- Ladekabel
- Schutzkoffer
- Bedienungsanleitung
Technical data
- Infrared resolution
- 220 × 160 (35,200) pixels
- Surface temperature range
- −10 °C … +330 °C
- Thermal sensitivity
- 0.07 °C
- Measuring accuracy
- −10…100 °C: ±2 °C; 100…330 °C: ±2 %
- Emissivity
- 0.1 … 1.0
- Field of view / minimum focus
- 35.4° × 26.8° / 4 mm
- Optical resolution
- 56:1
- Visible image resolution
- 2 megapixels
- Display
- 2.8 inch LC display
- Memory
- 1 GB internal, external up to 64 GB
- Power supply
- Li-ion 3.7 V 3200 mAh
- Operating temperature
- −10 °C … +50 °C
- Storage temperature
- −20 °C … +60 °C
- Dimensions
- 217 × 63 × 50 mm
- Weight
- 230 g
The CONDTROL IR-Cam 2 Pro is a thermal imaging camera with 220 × 160 pixels (35,200 measuring points) and Wi-Fi for building thermography and electrical and heating inspections. It measures from −10 to +330 °C with a thermal sensitivity of 0.07 °C and saves photos and videos with complete temperature data.
What tasks is the IR-Cam 2 Pro suitable for?
Finding thermal bridges and missing insulation, locating underfloor heating and pipes, detecting overheated terminals in distribution boards, monitoring processes. With 220 × 160 pixels, even small temperature differences on façades and components are clearly visible.
Sharp images, accurate measurements
The colour display with adjustable brightness, crosshairs and backlight timer makes on-site work easy. There are three image modes: visible image, infrared image over the visible image and pure thermal image. Nine colour palettes help present the thermogram to suit the task.
Wi-Fi for live transmission
Via Wi-Fi, the camera transmits the image live to Android TV or a Miracast receiver. Handy for large objects and when several people need to see the result at the same time.
Images with complete temperature data
It saves not just an image but the temperature of every point. This lets you analyse recordings later on the computer, compare them over time and use them for reports without measuring again. The data goes to the PC via USB or onto a microSD card.
Functions at a glance
- Infrared resolution 220 × 160 pixels, digital camera 2 megapixels
- Measuring range −10 … +330 °C, sensitivity 0.07 °C
- Adjustable emissivity 0.1 … 1.0
- Three image modes, nine colour palettes, photo and video
- Wi-Fi for Android TV / Miracast
- 1 GB internal memory, microSD up to 64 GB, tripod thread
Interpreting the result correctly
What is measured is the surface temperature. Shiny metals and glass reflect thermal radiation from the surroundings; set the emissivity accordingly. For building thermography, measurements with a large temperature difference between inside and outside give the most meaningful images.
Power supply and scope of delivery
Integrated 3.7 V / 3200 mAh Li-ion battery. 230 g, non-slip grip.
IR-Cam 2 Pro, charging cable, protective case, user manual.
Warranty
2 years' warranty; one additional year after registration in accordance with the warranty terms.
Compare models and applications
compare thermal imaging cameras. For high temperatures up to 1000 °C: IR-Cam 1.
