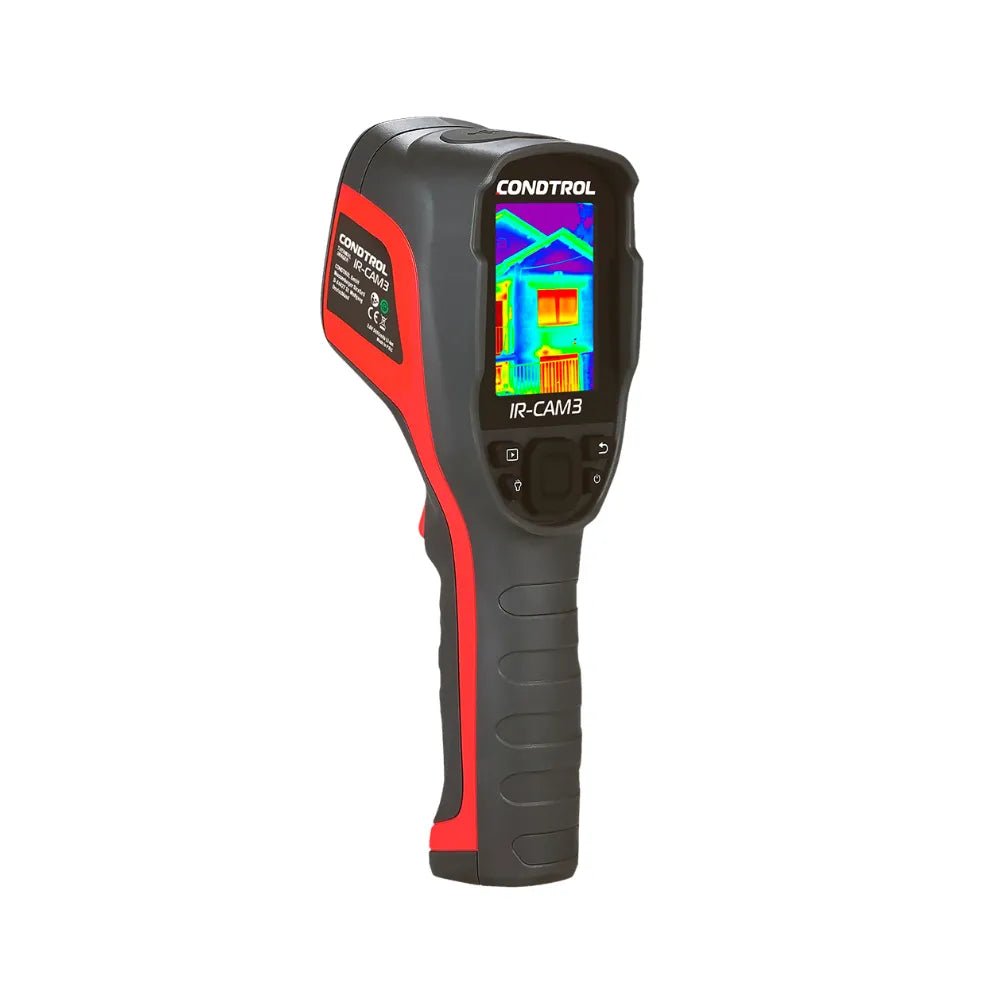

CONDTROL IR-Cam 3 Thermal imaging camera

The CONDTROL IR-Cam 3 is a thermal imaging camera with 256 × 192 pixels and a thermal sensitivity of 0.04 °C for building thermography, electrics, heating and air conditioning. It measures surface temperatures from −20 to +550 °C, is IP65-protected and stores up to 160,000 thermal images on the included 16 GB card.

What tasks is the IR-Cam 3 suitable for?

• Troubleshooting air conditioning, water and power supply
• Finding heat loss and cold bridges in buildings
• Detecting hot spots on machines, fuse boxes and air conditioners
• Quality control during construction and maintenance work

With 256 × 192 pixels, the image is detailed enough for façades and distribution boards; the sensitivity of 0.04 °C reveals even small temperature differences.

Two cameras, seven display modes

Infrared and digital camera (2 megapixels) work together; seven blending variants and colour modes such as “white hot”, “rainbow” or “black-red” adapt the image to the task. Two LEDs illuminate dark areas for the visible image.

Temperature alarm

An adjustable limit alarm reports overheating immediately, even in areas that are hard to see, such as fuse boxes and air conditioners.

Robustly built

The housing is dust- and water-protected to IP65 and, according to the manufacturer, impact-resistant up to a 2 m drop.

Functions at a glance

• Infrared 256 × 192 pixels, sensitivity 0.04 °C, field of view 56° × 42°
• Measuring range −20 … +550 °C, accuracy ±2% or ±2 °C
• Emissivity 0.1 … 1.0, limit alarm
• 2.8-inch display, 7 blending variants, 2 LEDs
• 16 GB microSD, transfer via USB-C

Interpreting the result correctly

What is measured is the surface temperature. Shiny metals and glass reflect thermal radiation from the surroundings; set the emissivity accordingly. Building thermography is most meaningful when there is a clear temperature difference between inside and outside.

Power supply and scope of delivery

Integrated 3.6 V / 5000 mAh Li-ion battery, charging via USB-C. 520 g.

IR-Cam 3, USB-C cable, 16 GB SD card, user manual.

Warranty

2 years' warranty; one additional year after registration in accordance with the warranty terms.
