CONDTROL Fliesen 4D Cross-line lasers
warranty
invoice
returns
in Germany
Goes with it 4
Battery adapter Bosch 18 V
€11,90
Battery adapter Makita 18 V
€11,90
Battery adapter DeWalt 18 V
€11,90
Battery adapter Metabo 18 V
€11,90In use
What it can do
Comparison
| Fliesen 4D | ||
|---|---|---|
| Key figures | ||
| Range / with receiver | 30 m / 60 m | 30 m / 60 m |
| Accuracy | ±0,3 mm/m | ±0,3 mm/m |
| Laser lines | 4 × 360° | 360° + 2 vertical |
| Laser colour | Green | Green |
| Self-levelling range | ±3° | ±3° |
| Dust and water protection | IP54 | IP54 |
| Power supply | Li-ion 3.7 V 4000 mAh | Li-ion 3.7 V 4000 mAh |
| Tripod thread | 5/8" and 1/4" | 5/8" and 1/4" |
| Functions | ||
| Receiver mode | ||
| Tilt mode | ||
| Plumb points | k. A. | |
| Bluetooth / app | k. A. | |
| Remote control | k. A. | k. A. |
| Display | k. A. | k. A. |
| Digital tilt | k. A. | |
n/a = not specified

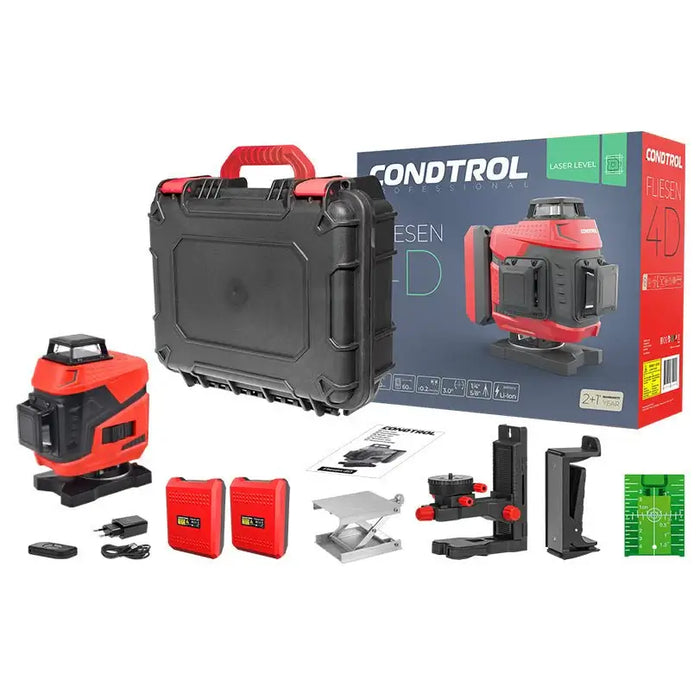

In the box
- Cross line laser Fliesen 4D
- 2 × rechargeable batteries,
- Lifting platform,

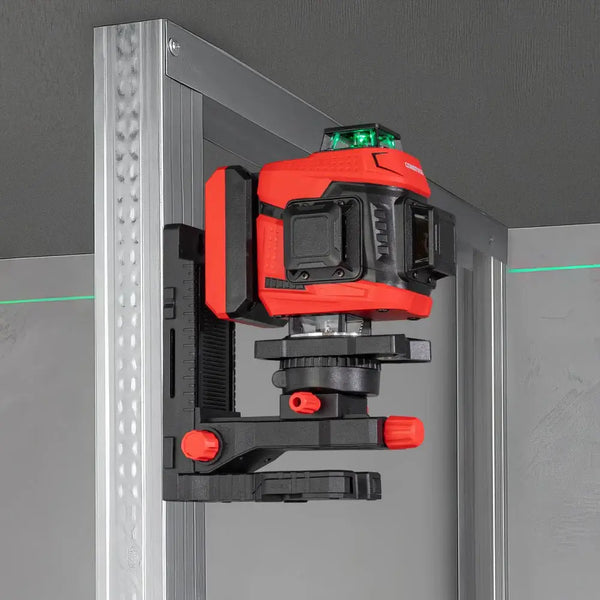

- Wall mount,
- Clamp mount,
- magnetic target plate,
- User manual,
- Charger
- Hard case
Details
Frequently asked questions
How does the Fliesen 4D differ from a 3D laser?

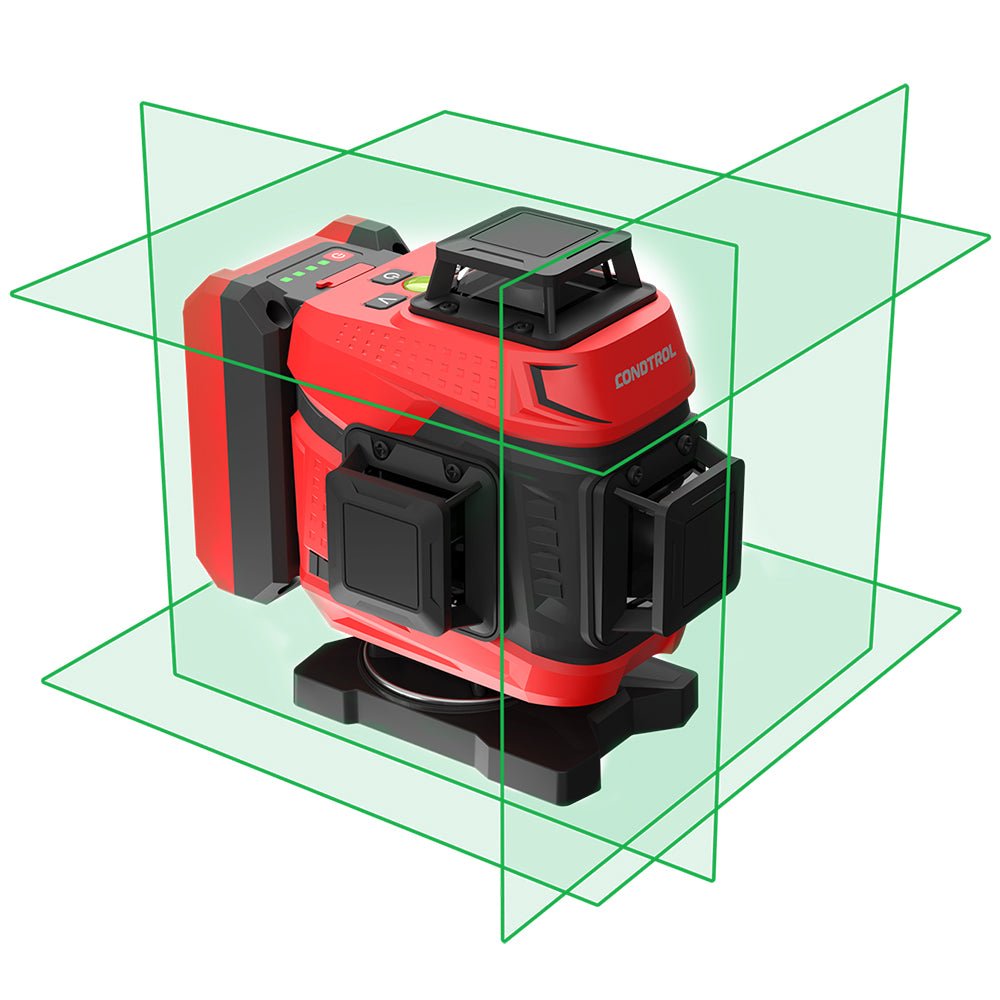

The Fliesen 4D has two horizontal laser planes instead of one. The lower one is just 18 mm above the floor and serves as a reference for the first row of tiles or the floor covering; the upper one is aligned close to the ceiling. This lets you work at the bottom and top at the same time without moving the device. Vertical planes for corners and axes are added.
What does the Fliesen 4D offer?
Advantages of the Fliesen 4D
• 2 Li-ion batteries 3.7 V 4000 mAh for long operating time.
• 2 horizontal laser beams: the lower one allows precise planes close to the floor (18 mm), the upper one is aligned close to the ceiling.
• Pulse mode for working with a compatible laser receiver.
• Green laser at 515 nm for good visibility.
• Extended scope of delivery with batteries, plastic case, lifting platform, mounting accessories and magnetic target plate.

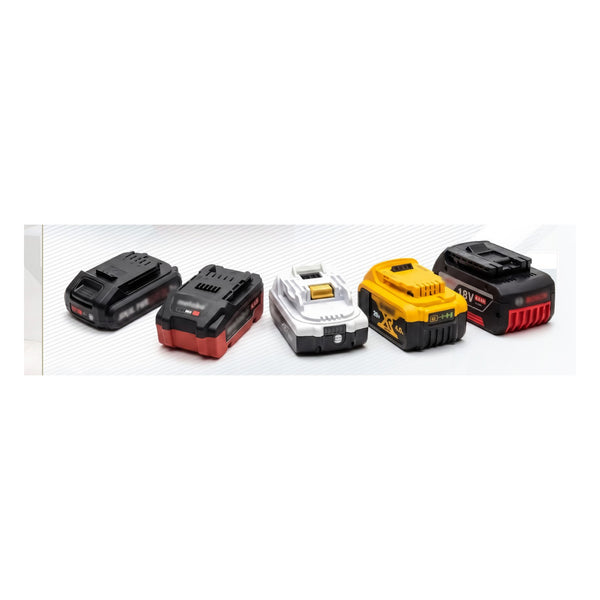

• Optional: battery adapters for 18 V tool batteries from Bosch, Makita, DeWalt and Metabo.
• Water and dust protection to IP54.
Is the CONDTROL Fliesen 4D cross-line laser suitable for use in difficult conditions?
Yes, the CONDTROL Fliesen 4D has a robust rubber-protected housing and meets protection class IP54, making it protected against dust and splashing water. This ensures reliability and safety even in demanding working conditions.
Technical data
- Range / with receiver
- 30/60 m
- Levelling accuracy
- ±0.3 mm/m
- Self-levelling range
- ± 3°
- Operating time
- 5 - 20 hours
- IP protection
- IP54
- Tripod thread
- 1/4’’ and 5/8’’
- Laser type
- Class II 515 nm < 1 mW
- Power supply
- 3.7 V 4000 mAh Li-ion battery
- Operating temperature
- -10°C ... +40°C
- Storage temperature
- -15°C ... +50°C
- Dimensions
- 147×91×147 mm
- Weight
- 878 g
From our guides

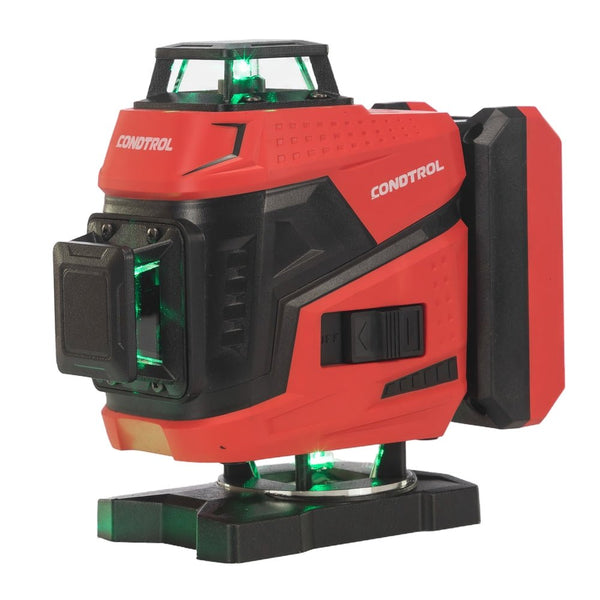

The CONDTROL Fliesen 4D is a green cross-line laser for tilers: two horizontal 360° planes, one 18 mm above the floor and one below the ceiling, plus two vertical planes. Accuracy ±0.3 mm/m, self-levelling up to ±3°, metal structure and IP54. Supplied in a hard case with brackets, target plate and two rechargeable batteries.
What tasks is the Fliesen 4D suitable for?

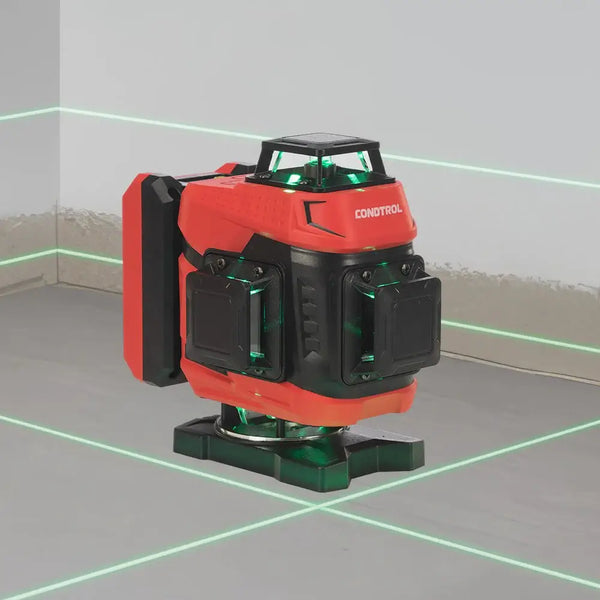

For floor and wall tiles in one go. The lower plane sets the first row of tiles directly at the floor, the upper one the top edge below the ceiling. Because all planes are projected all the way round, the tool doesn't need to be turned or moved when laying out a room. This saves time and material.
Three operating modes
- Self-levelling up to 3°: for floors, walls, fence building and wallpapering

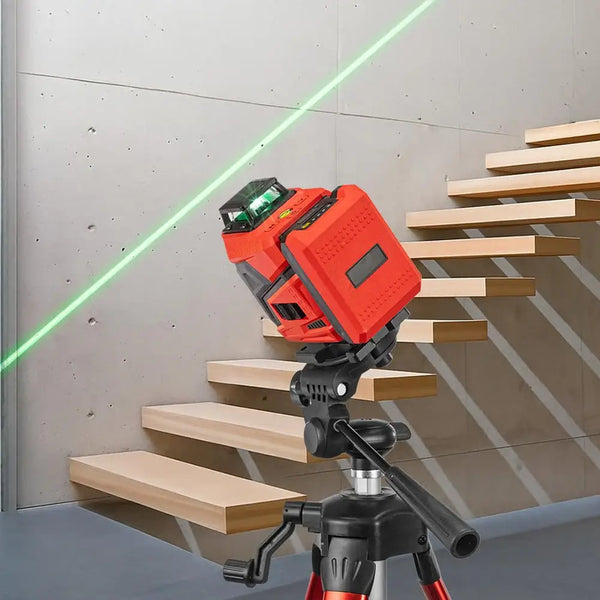

- Locked compensator: inclined lines and planes for stairs, corners and decorative elements
- Pulse mode: for very bright light, together with the CONDTROL laser receiver up to 60 m
Functions at a glance
- Two horizontal and two vertical 360° planes, lower plane 18 mm above the floor
- True green laser 515 nm, clearly visible even in daylight
- Accuracy ±0.3 mm/m, range 30 m, 60 m with receiver
- Metal structure, non-slip ribbed rubber coating, IP54

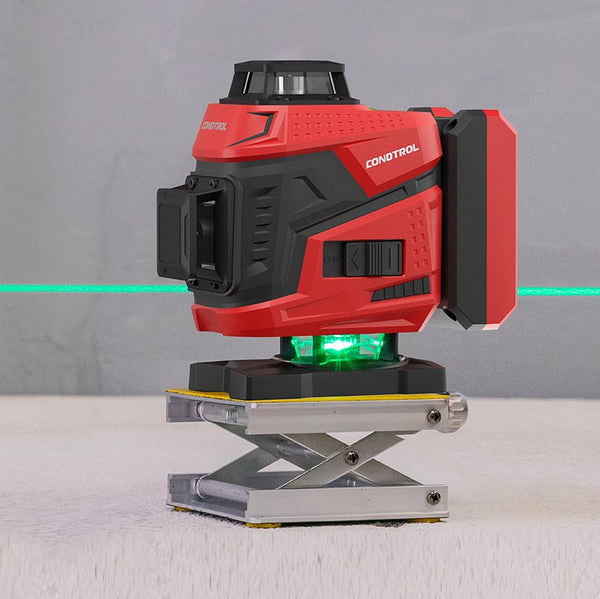

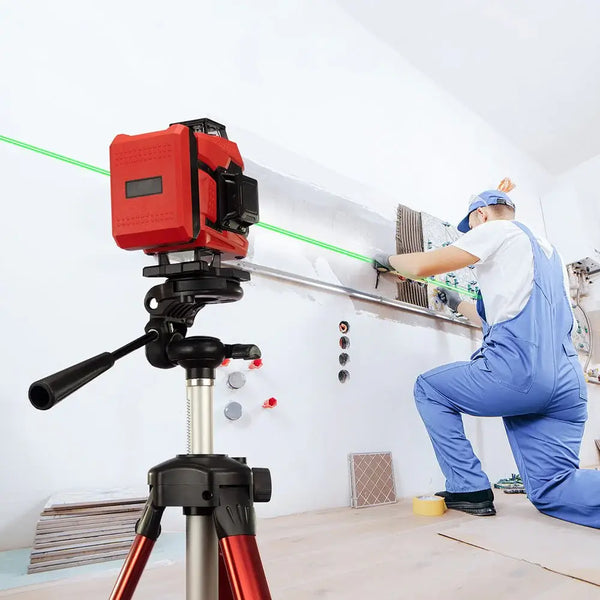

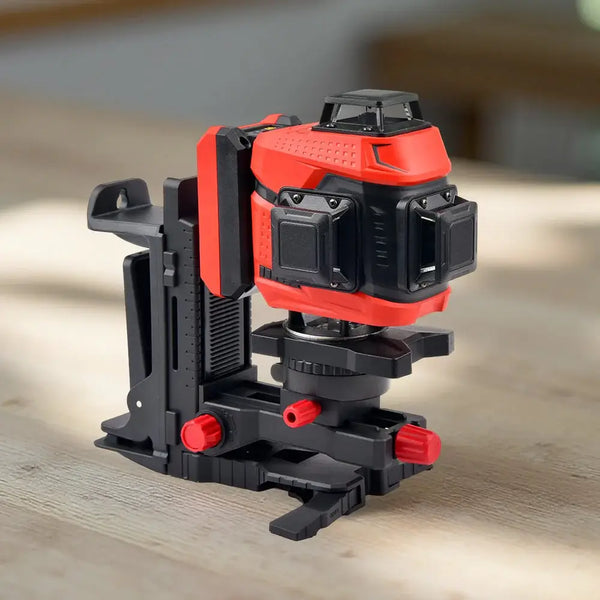

- 1/4″ and 5/8″ tripod threads, lifting platform
Understanding range and accuracy
The visibility of the line depends on the ambient light and the surface. Outdoors and over long distances, work in pulse mode with a receiver. The stated accuracy applies within the self-levelling range of ±3°. IP54 protects against dust and splash water.
Power supply and scope of delivery

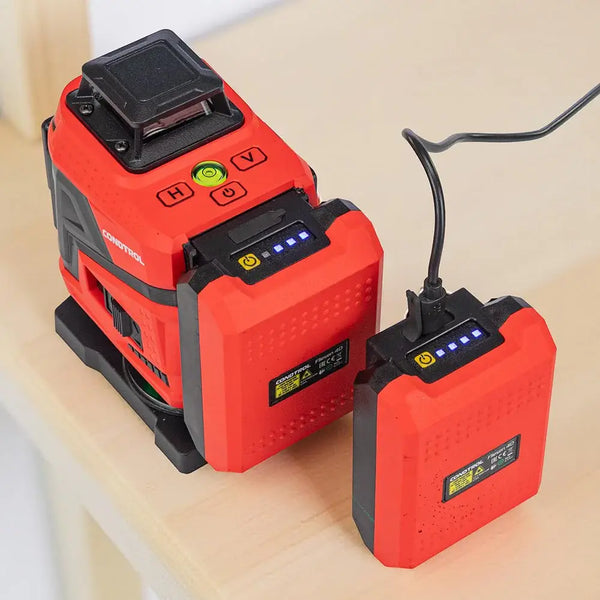

Two 3.7 V / 4000 mAh Li-ion batteries. According to the manual, runtime is 20 hours with one plane switched on and 5 hours with all planes. While one is charging, you keep working with the second. With a battery adapter, the laser also runs on 18 V tool batteries from Bosch, Makita, DeWalt or Metabo.
Fliesen 4D, 2 rechargeable batteries, charger, lifting platform, wall bracket, clamp holder, magnetic target plate, hard case, user manual.
Warranty
2 years' warranty; one additional year after registration in accordance with the warranty terms.
Compare models and applications
Compare 4D cross-line lasers. Only with floor-level plane, and more affordable: Boden 3D. Matching receiver: Laser receiver.
