CONDTROL Boden 3D Cross-line lasers
warranty
invoice
returns
in Germany
Goes with it 2
H160
€32,90
In use
What it can do
Comparison
| Boden 3D | ||
|---|---|---|
| Key figures | ||
| Range / with receiver | 30 m / 60 m | 30 m / 60 m |
| Accuracy | ±0,3 mm/m | ±0,3 mm/m |
| Laser lines | 360° + 2 vertical | 4 × 360° |
| Laser colour | Green | Green |
| Self-levelling range | ±3° | ±3° |
| Dust and water protection | IP54 | IP54 |
| Power supply | Li-ion 3.7 V 4000 mAh | Li-ion 3.7 V 4000 mAh |
| Tripod thread | 5/8" and 1/4" | 5/8" and 1/4" |
| Functions | ||
| Receiver mode | ||
| Tilt mode | ||
| Plumb points | k. A. | |
| Bluetooth / app | k. A. | |
| Remote control | k. A. | k. A. |
| Display | k. A. | k. A. |
| Digital tilt | k. A. | |
n/a = not specified

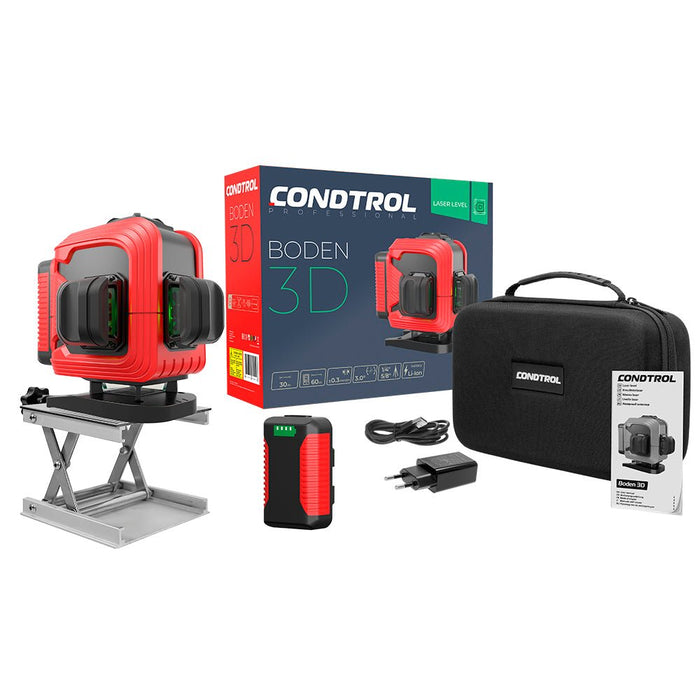

In the box
- The Boden 3D comes with the
- Cross line laser
- 2 × rechargeable batteries
- Lifting platform
- User manual
- Charger
- Protective bag.
Details
Frequently asked questions
How is the laser protected against water and dust?
The Boden 3D cross-line laser is suitable for indoor and outdoor use thanks to its shock-resistant housing with metal frame and its protection against water and dust.
Protection and robustness
Water and dust protection: the laser is protected to IP54. This means it is protected against dust deposits and can withstand splashing water from all directions.

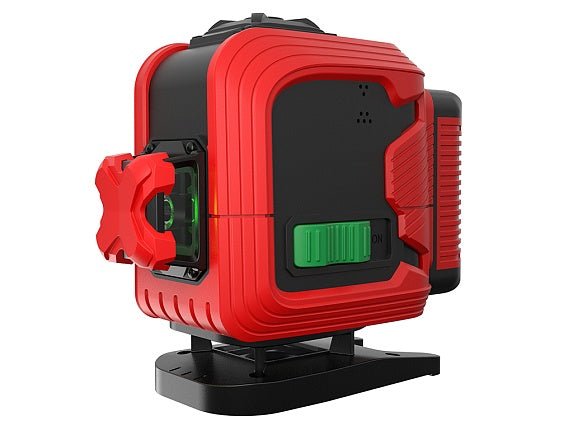

Shock-resistant housing: the robust housing with metal frame keeps the laser working reliably in demanding environments.
How does the laser achieve better durability and functionality?

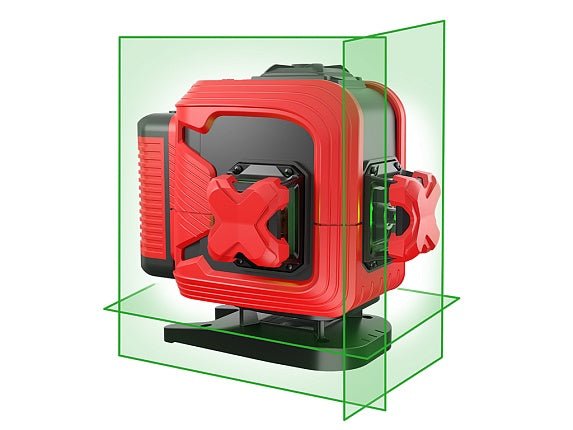

The Boden 3D cross-line laser has a metal frame and a rubber-protected housing that protect it against knocks. It projects three planes: two vertical lines and a horizontal 360° line just 18 mm above the floor. Being so close to the floor helps when laying tiles and floor coverings.
Two batteries and a lifting platform are included. IP54 housing, protected against dust and splashing water.
How well does it work under different conditions?
Thanks to its water and dust resistance, the laser is designed to work reliably and can be operated over a wide temperature range.
Technical data
- Range / with receiver
- 30/60 m
- Levelling accuracy
- ±0.3 mm/m
- Self-levelling range
- ± 3°
- Operating time
- 5 - 20 hours
- IP protection
- IP54
- Tripod thread
- 1/4’’ and 5/8’’
- Laser type
- Class II 515 nm < 1 mW
- Power supply
- 3.7 V 4000 mAh Li-ion battery
- Operating temperature
- -10°C ... +40°C
- Storage temperature
- -15°C ... +50°C
- Dimensions
- 147×91×136 mm
- Weight
- 728 g
From our guides
The CONDTROL Boden 3D is a green cross-line laser for floor and tiling work: the horizontal 360° line lies just 18 mm above the floor, plus two vertical lines. Accuracy ±0.3 mm/m, self-levelling up to ±3°, metal frame and IP54.
What tasks is the Boden 3D suitable for?

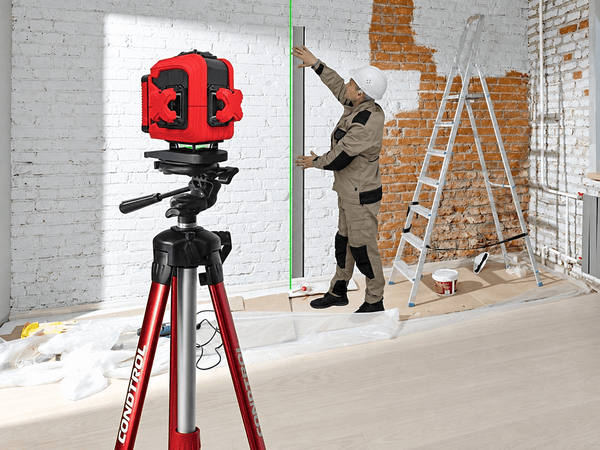

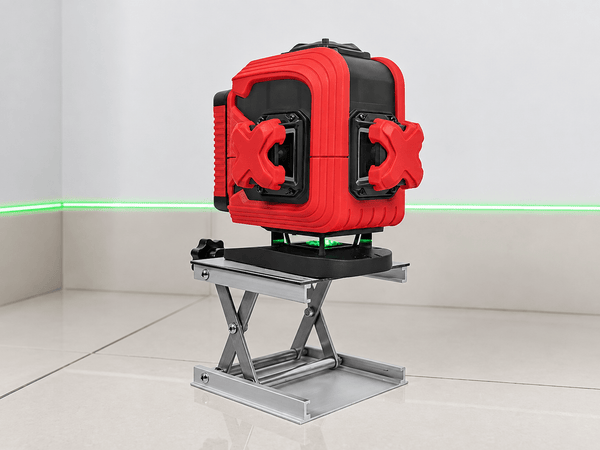

For screed, floor coverings and tiles – wherever the height right at the floor has to be correct. The plane close to the floor shows unevenness and gradients without converting from a higher line. With the included lifting platform, horizontal planes can be set precisely at a low height. Plus wall alignment, fence building and wallpapering.
Three operating modes
- Self-levelling up to 3°: for floors, walls, fence building and wallpapering
- Locked compensator: inclined lines and planes for stairs, corners and decorative elements
- Pulse mode: for very bright light, together with the CONDTROL laser receiver up to 60 m
Functions at a glance

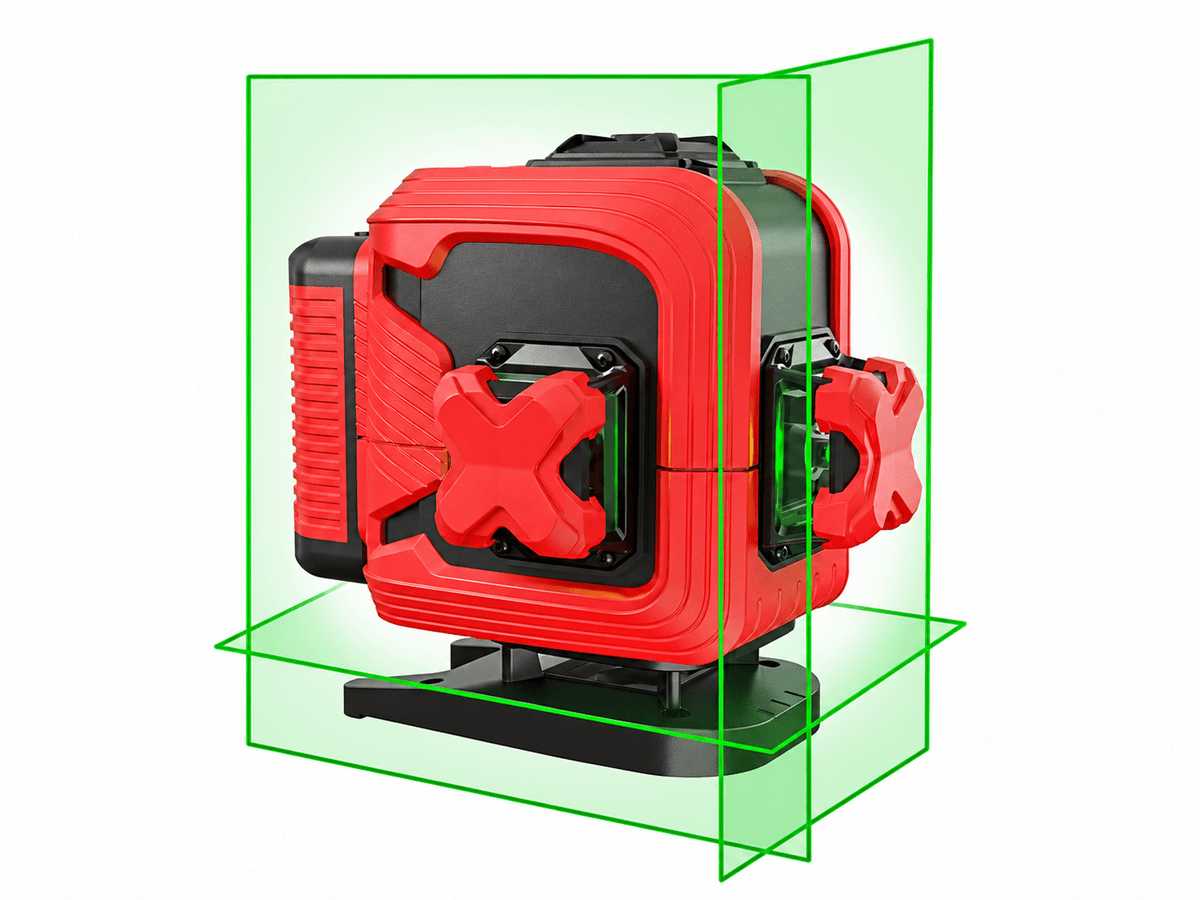

- Horizontal 360° line 18 mm above the floor, two vertical lines
- True green laser 515 nm, clearly visible even in daylight
- Accuracy ±0.3 mm/m, range 30 m, 60 m with receiver
- Metal frame, housing with rubber protection, IP54

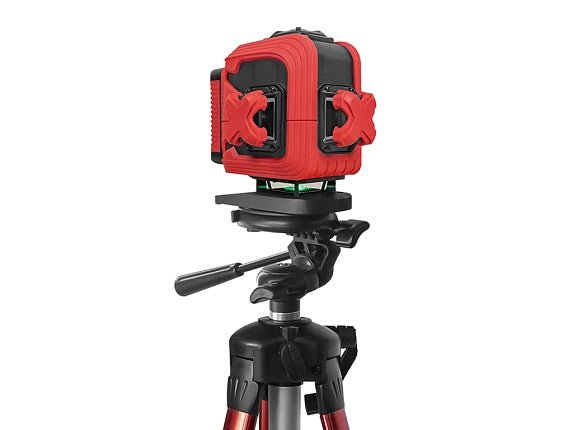

- 1/4″ and 5/8″ tripod threads, metal lifting platform
Understanding range and accuracy
The visibility of the line depends on the ambient light and the surface. Outdoors and over long distances, work in pulse mode with a receiver. The stated accuracy applies within the self-levelling range of ±3°. IP54 protects against dust and splash water.
Power supply and scope of delivery

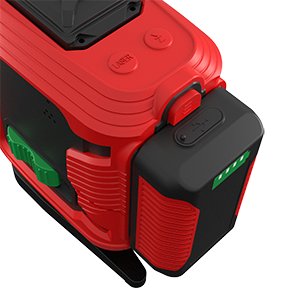

Two 3.7 V / 4000 mAh Li-ion batteries. According to the manual, runtime is 20 hours with one line switched on and 5 hours with all lines. While one is charging, you keep working with the second.
Cross-line laser, 2 rechargeable batteries, charger, lifting platform, protective pouch, user manual.
Warranty
2 years' warranty; one additional year after registration in accordance with the warranty terms.
Compare models and applications
Compare 3D cross-line lasers. With a second horizontal under the ceiling for wall tiles: Fliesen 4D. Matching receiver: Laser receiver.
