CONDTROL XLiner Combo 360G Kit Cross-line lasers

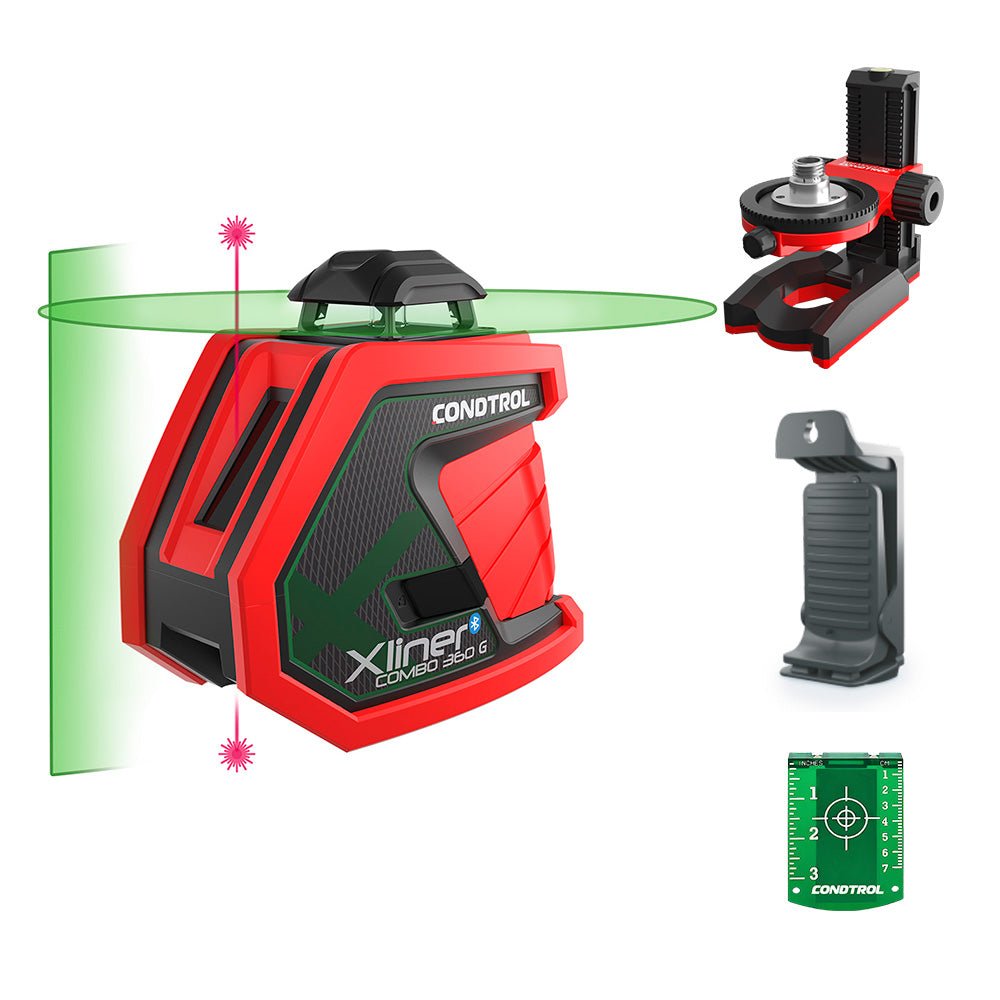

The CONDTROL XLiner Combo 360G Kit is a green cross-line laser with a 360° horizontal line, vertical lines, plumb point and Bluetooth control, supplied with Wall Mount Pro wall bracket, clamp holder and magnetic target plate. Accuracy ±0.2 mm/m, self-levelling ±3.5°, IP54.

What tasks is the XLiner Combo 360G suitable for?

Room layout, tiles and floor coverings, furniture and kitchen installation, decoration, drywall. The horizontal 360° line runs around all walls, plus vertical lines, cross lines and inclined lines. With the brackets from the kit, the laser sits on a wall, profile or pipe exactly at the height you need.

Plumb point from floor to ceiling

The plumb function transfers reference points from the floor to the ceiling, for example for lights, partition walls or ceiling elements.

Remote control via app

Via Bluetooth and the free XLiner Remote app (App Store and Google Play), you switch laser lines and points on and off and adjust the brightness without walking to the tool.

Line close to the floor

The horizontal 360° line runs close to the base of the housing. This lets you put marks directly on skirting boards or the floor without converting.

Slope and pulse mode

In slope mode, self-levelling is off and the line can be projected at any angle: for stairs, railings or diagonal tile patterns. In pulse mode, the laser works with a receiver even outdoors and in bright light.

Functions at a glance

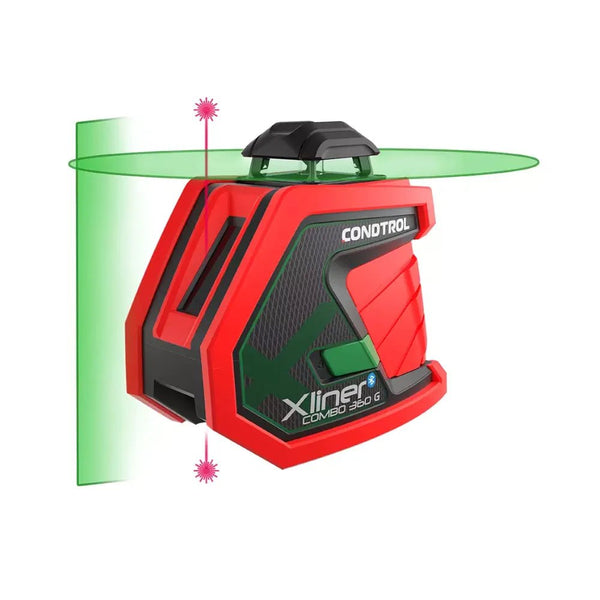

• 360° horizontal, vertical lines, cross lines, plumb point
• Green laser 520 nm, accuracy ±0.2 mm/m, self-levelling ±3.5°
• Range 50 m, 100 m with receiver
• Bluetooth control via XLiner Remote
• Slope and pulse mode
• IP54, 1/4″ and 5/8″ tripod threads

Understanding range and accuracy

The visibility of the line depends on the ambient light and the surface; the magnetic target plate makes it easier to see at a distance. In sunlight, work in pulse mode with a receiver. The accuracy applies within the self-levelling range of ±3.5°.

Power supply and scope of delivery

4 × AA batteries (LR6), available everywhere.

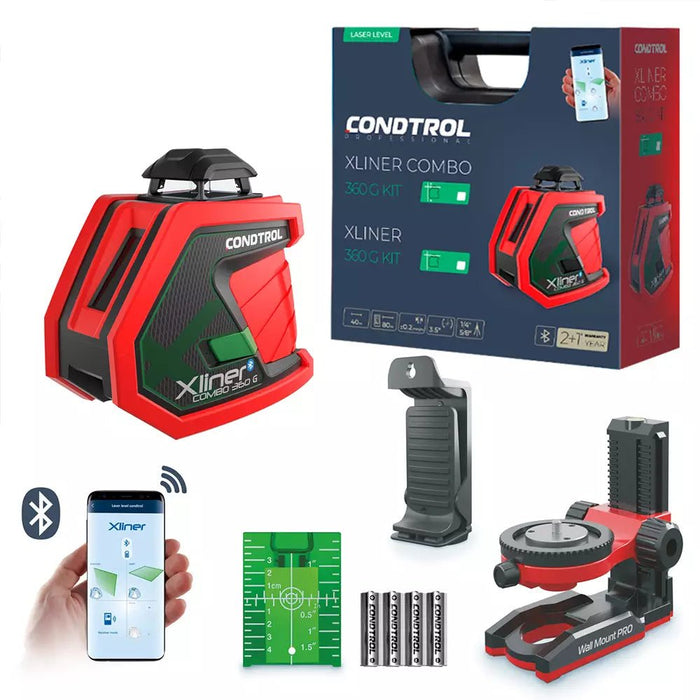

XLiner Combo 360G, Wall Mount Pro, clamp holder, magnetic target plate, 4 AA batteries, protective pouch, user manual.

Warranty

2 years' warranty; one additional year after registration in accordance with the warranty terms.

Compare models and applications

Compare cross-line lasers. More models with app: cross-line lasers with remote control and Bluetooth. More kits: cross-line lasers with accessories.
