CONDTROL Smart 3D Plus Cross-line lasers
warranty
invoice
returns
in Germany
Goes with it 2
H160
€32,90
In use
What it can do
Comparison
| Smart 3D Plus | ||
|---|---|---|
| Key figures | ||
| Range / with receiver | 30 m / 60 m | 30 m / 60 m |
| Accuracy | ±0,3 mm/m | ±0,3 mm/m |
| Laser lines | 3 × 360° | 4 × 360° |
| Laser colour | Green | Green |
| Self-levelling range | ±3° | ±3° |
| Dust and water protection | IP54 | IP54 |
| Power supply | Li-ion 4.2 V 3000 mAh | Li-ion 4.2 V 3000 mAh |
| Tripod thread | 1/4" | 1/4" |
| Functions | ||
| Receiver mode | ||
| Tilt mode | ||
| Plumb points | k. A. | k. A. |
| Bluetooth / app | k. A. | k. A. |
| Remote control | ||
| Display | k. A. | k. A. |
| Digital tilt | k. A. | k. A. |
n/a = not specified

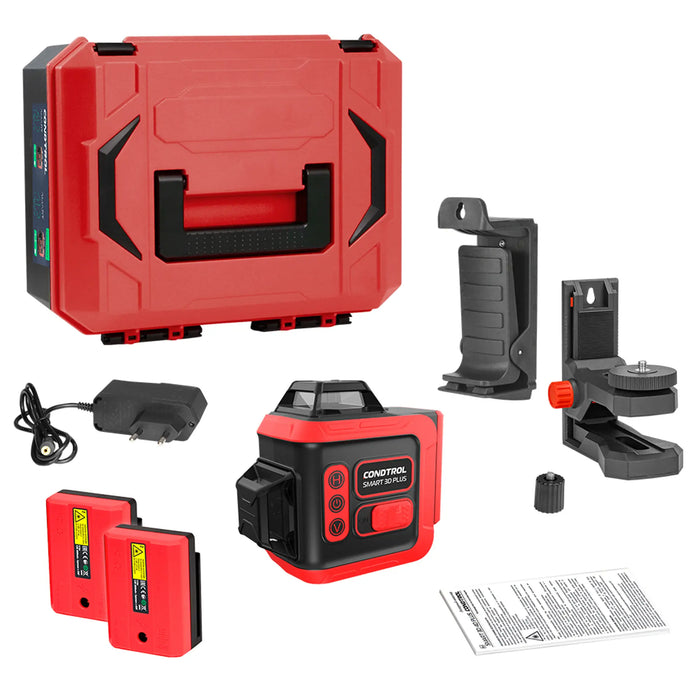

In the box
- CONDTROL Smart 3D Plus
- 2 × Li-ion battery
- Wall mount with clamp
- Adapter 1/4″–5/8″
- Remote control
- Charger
- User manual
- Plastic case
Details
Frequently asked questions
Can I work outdoors?
Yes, in pulse mode with a compatible laser receiver. The range depends on ambient light and conditions.
Which tripods are compatible?
Common construction tripods with 1/4″ or 5/8″ (via adapter). Choose the working height and thread according to the task.
How does the SMART 3D PLUS differ from the SMART 4D PLUS?
The SMART 3D PLUS projects 2 vertical planes and 1 horizontal 360° plane. The 4D has an additional second horizontal plane (e.g. for work close to the floor or ceiling).
Technical data
- Working range / with detector
- 30 m / 60 m
- Self-levelling accuracy
- ±0.3 mm/m
- Self-levelling range
- ±3°
- Dust and splash protection
- IP54
- Tripod thread
- 1/4"
- Laser colour
- Green
- Laser type
- Class II, 515 nm < 1 mW
- Power source
- 4.2 V 3000 mAh Li-ion rechargeable battery
- Operating temperature
- -10°C... +40°C
- Storage temperature
- -20°C... +60°C
- Dimensions
- 110 × 80 × 108 mm
- Weight
- 590 g
From our guides

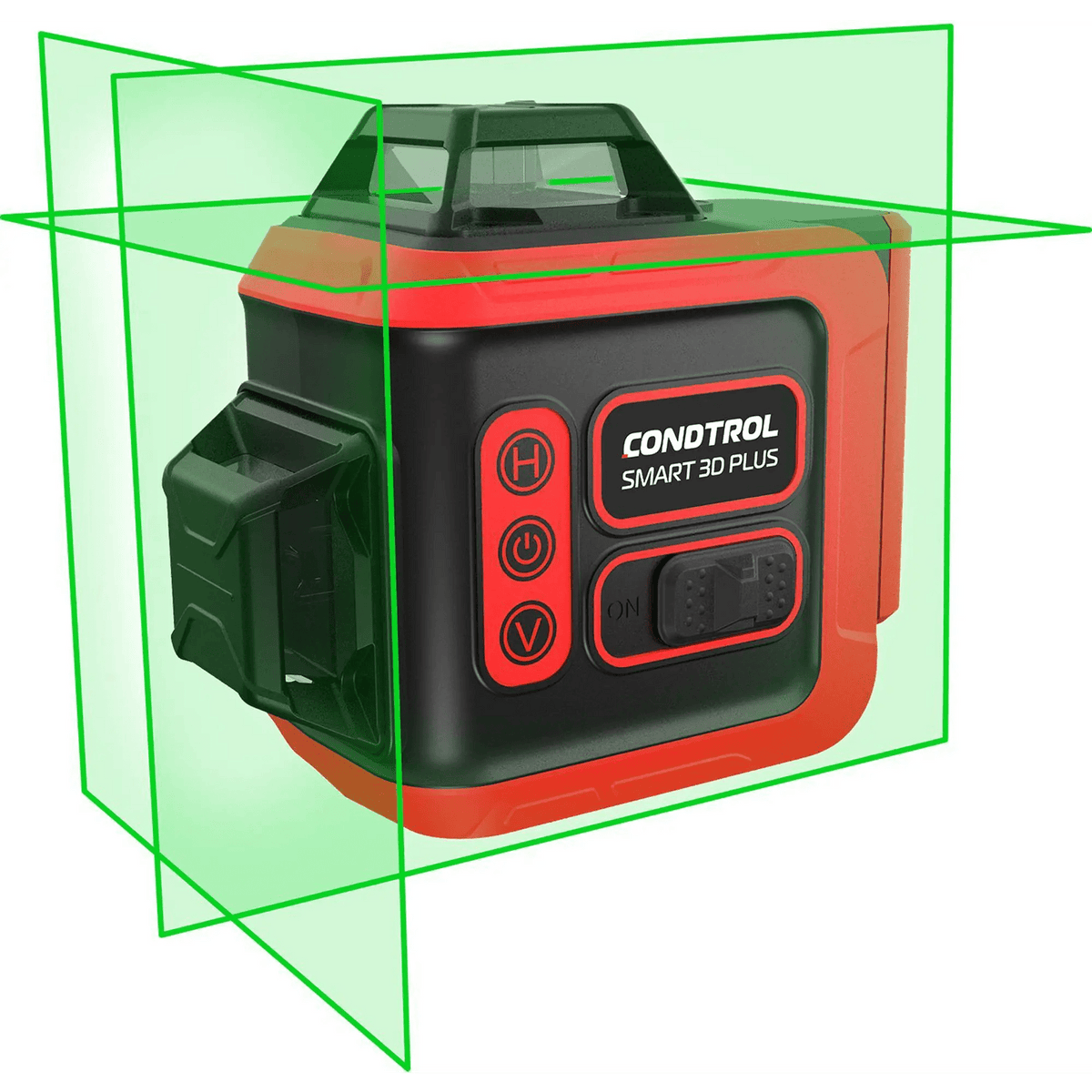

The CONDTROL Smart 3D Plus projects one horizontal and two vertical green 360° planes. This lets you transfer equal heights across several walls and set reference lines for drywall, room layout and installation without moving the laser for each wall.
3×360° for room layout and interior finishing
Use the horizontal plane for profiles, wall cabinets and ceiling heights. The two vertical planes help with axes and right-angled references. For a single wall, a 2D model may be enough; for two horizontal reference heights at once, a 4D model is the suitable alternative.
Technical selection criteria
- Working range: up to 30 m without, up to 60 m with a compatible receiver
- Accuracy ±0.3 mm/m; self-levelling range ±3°
- Dust and splash water protection IP54; 1/4″ tripod thread
- Dimensions 110 × 80 × 108 mm; weight with battery 590 g
- A 4.2 V 3000 mAh Li-ion battery powers the tool; two batteries are included
Operation and runtime

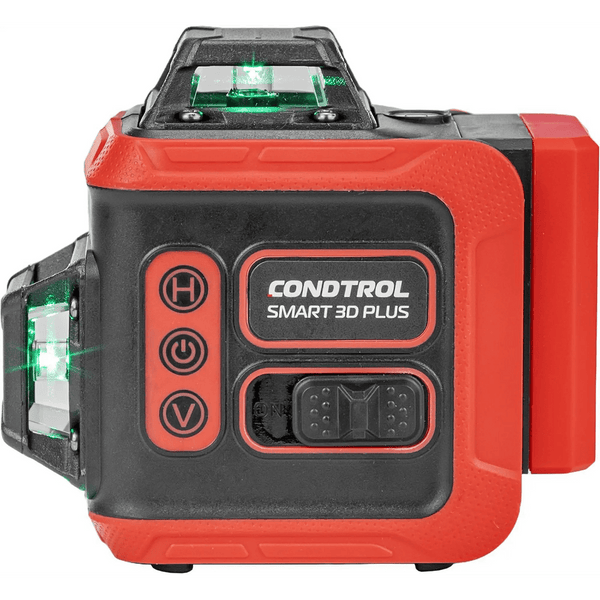

The touch panel switches the planes and pulse mode. The manual states up to 12 hours with one laser emitter switched on and about 3 hours with all planes switched on. The number of active planes is therefore decisive when comparing runtime.
Receiver mode and inclined lines
In bright ambient light, use pulse mode with a receiver that is proven to be compatible. The receiver is not included as standard. Visibility and working range depend on the lighting conditions. A locked compensator allows inclined projections; it does not set a digital target angle.

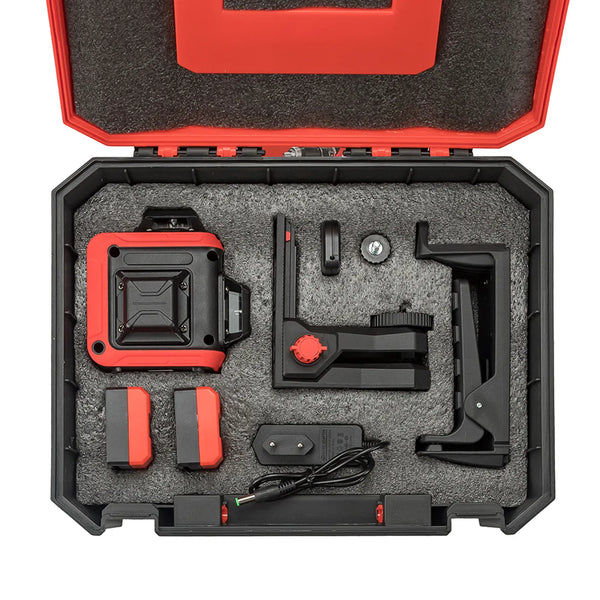

Scope of delivery
Smart 3D Plus, two Li-ion batteries, wall bracket with clip, 1/4″–5/8″ thread adapter, remote control, charger, user manual and plastic case. According to the manual, a lifting platform belongs to the 4D version, not the 3D version.
Compare and apply
Compare 3D cross-line lasers by features. For a single wall: 2D lasers; for two horizontal heights: 4D lasers. Matching threads and working heights: tripods and poles.
Shipping and warranty
Free shipping within Germany. Two years' warranty; one additional year after registration in accordance with the warranty terms.
