CONDTROL Scan Detectors
warranty
invoice
returns
in Germany
Comparison
| Scan | ||
|---|---|---|
| Key figures | ||
| Measuring principle | Wall scanner, metal / wood / live cables | Transmitter and receiver, drill point through the wall |
| Detection depth metal | Ferrous metals 100 mm, non-ferrous metals 80 mm | up to 50 mm (transmitter) |
| Detection depth wood | 20 mm | k. A. |
| Detection depth cables | 50 mm | up to 150 mm (transmitter) |
| Detection range | k. A. | 2 … 150 cm, display up to 200 cm |
| Accuracy | k. A. | 1 cm (3–10 cm), 10 % (11–200 cm), detection 3 % of the distance |
| Functions | ||
| Auto power-off | after 5 minutes | k. A. |
| Power supply | 1 × 9 V 6LR61 (alkaline) | Transmitter / receiver: 3 × AAA 1.5 V each |
| Operating time | 6 hours | Transmitter approx. 8 h / receiver approx. 12 h |
| Operating temperature | −10 … +50 °C | −10 … +40 °C |
| Dimensions | 196 × 76 × 25 mm | Transmitter / receiver: 180 × 78 × 32 mm each |
| Weight | 145 g | Transmitter 245 g / receiver 260 g |
n/a = not specified
In the box
- CONDTROL Scan
- 9 V battery 6LR61
- Protective bag
- User manual
Technical data
- Measuring principle
- Wall scanner for metal, wood and live cables
- Detection depth ferrous metals
- 100 mm
- Detection depth non-ferrous metals
- 80 mm
- Detection depth live cables
- 50 mm
- Detection depth wood
- 20 mm
- Auto power-off
- after 5 minutes
- Power supply
- 1 × 9 V 6LR61 (alkaline)
- Operating time
- 6 hours
- Operating temperature
- −10 … +50 °C
- Storage temperature
- −20 … +70 °C
- Dimensions
- 196 × 76 × 25 mm
- Weight
- 145 g

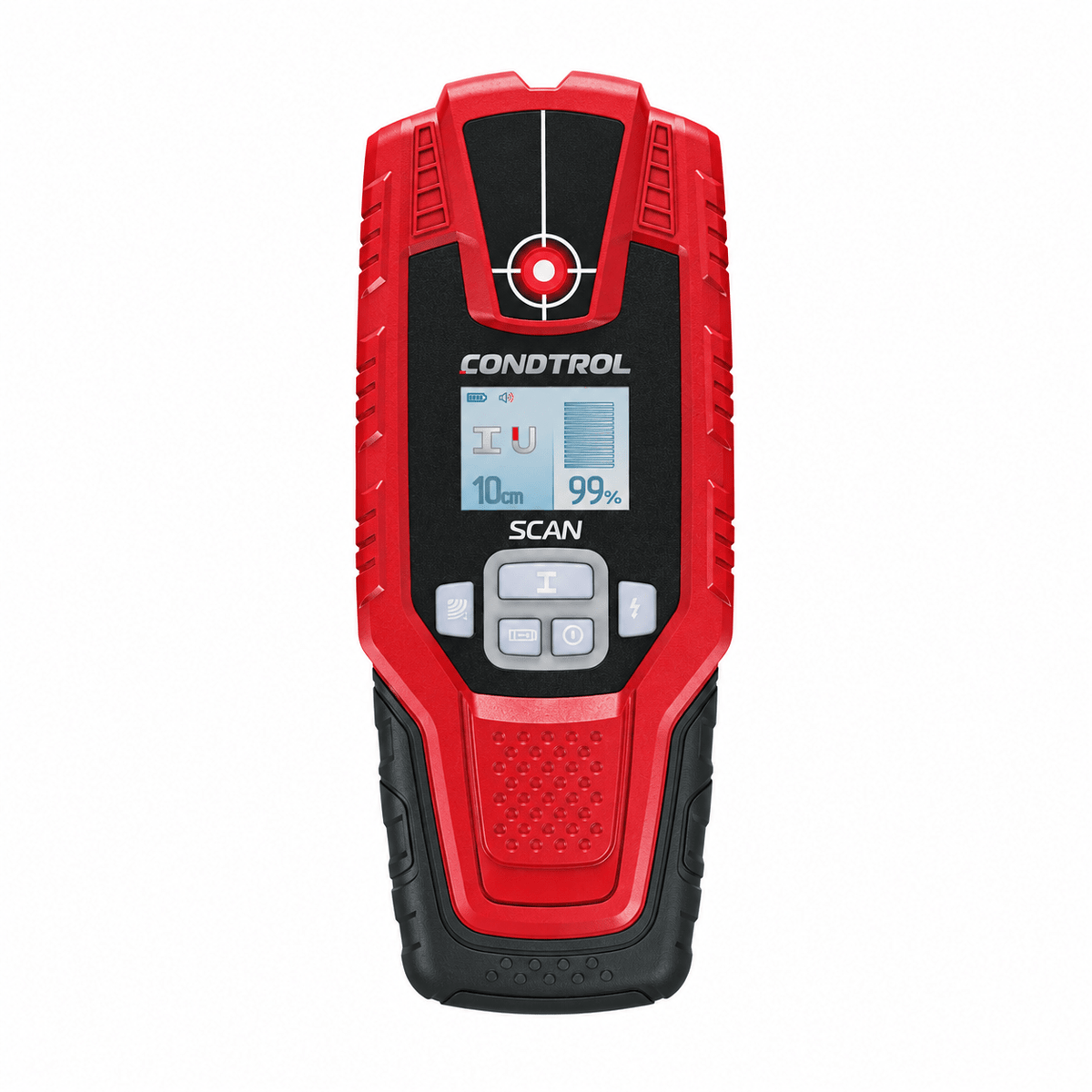

The The cable detector CONDTROL Scan is a reliable tool for detecting hidden cables and various structures made of wood, metal and plastic in building walls. The information is shown on a convenient colour display, and settings can easily be adjusted using a user-friendly button system.
Functions and features
• Precise material detection: a red LED lights up when a particular material is detected.
• Optional acoustic alarm: a beep can be activated as needed to make detection easier.
The CONDTROL Scan is a practical tool for safe and accurate detection of hidden materials, ideal for construction and renovation work.
