CONDTROL QB Set Cross-line lasers

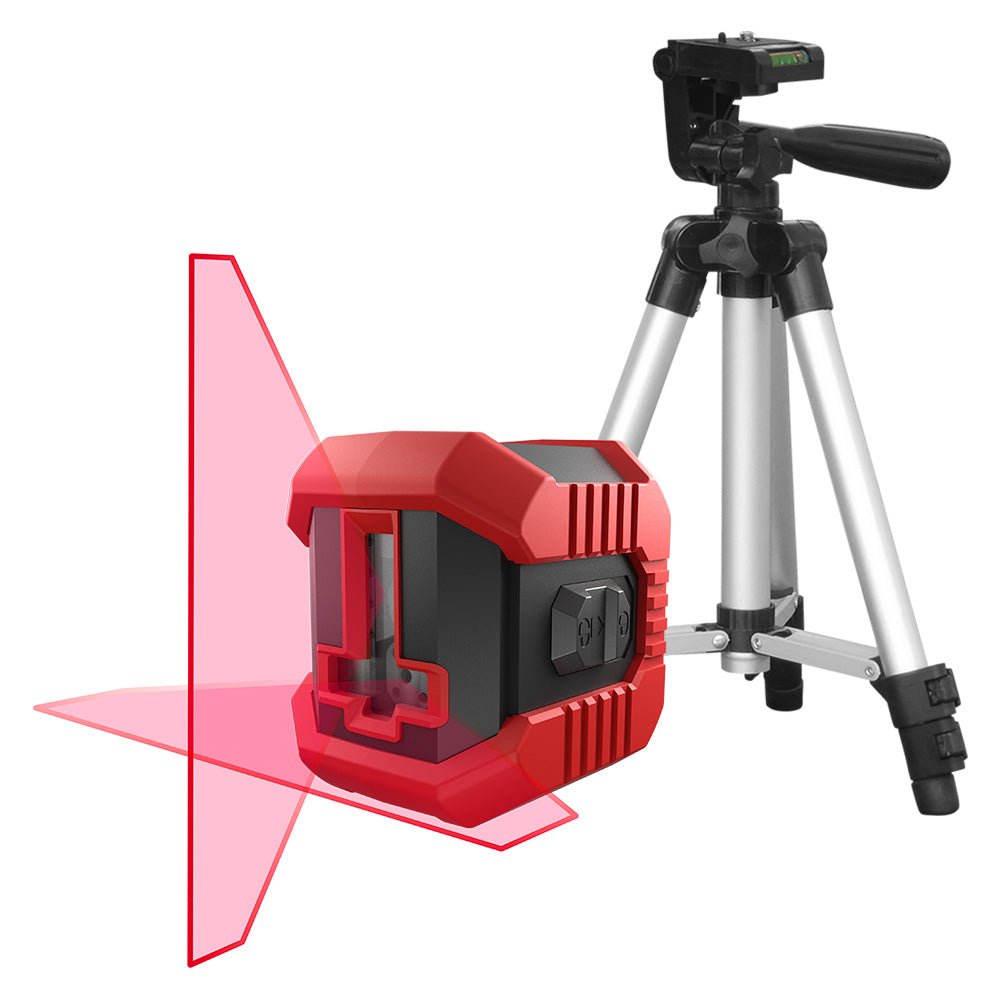

The CONDTROL QB kit is a compact cross-line laser with a red horizontal and vertical line, supplied with an H130 tripod with height-adjustable head. Working range 10 m, self-levelling up to ±5°, accuracy ±0.5 mm/m, IP54. Unpack, set up, start.

What tasks is the QB suitable for?

• Aligning walls, floors and ceilings
• Laying floor coverings, wallpapering, tiling
• Installing door and window frames
• Mounting wall cabinets, shelves, curtain rails and decorations
• Marking out electrical installations and cable routes

Two operating modes

In automatic mode, the laser levels itself up to ±5° and shows horizontal and vertical lines. With the compensator locked, it projects lines at any angle, for example for stairs or roof slopes.

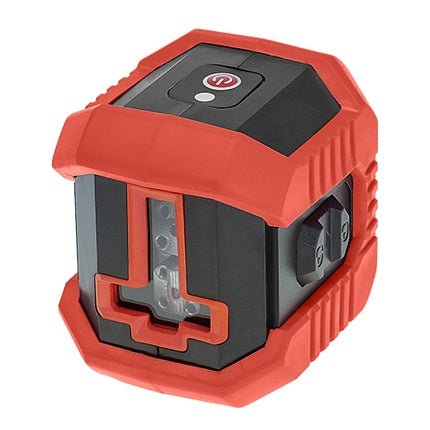

Robust despite its small size

The “housing within a housing” principle protects the compensator from impacts. The ribbed rubber coating sits securely in the hand and protects against falls from up to 1 m. Sealed housing and rubberised battery compartment edge: IP54 against dust and splash water.

Functions at a glance

• Horizontal and vertical line, cross line
• Red laser 635 nm, working range 10 m, accuracy ±0.5 mm/m
• Self-levelling ±5°, slope mode
• IP54, 1/4″ tripod thread, 175 g

Understanding range and visibility

The QB is made for indoor use. A red line is harder to see in bright daylight than a green one; for bright rooms and more range there is the QB Green with 20 m. The accuracy applies within the self-levelling range of ±5°.

Power supply and scope of delivery

2 × AAA batteries.

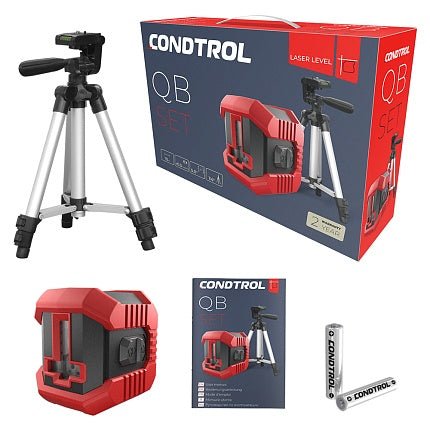

QB, H130 tripod, 2 AAA batteries, user manual.

Warranty

2 years' warranty; one additional year after registration in accordance with the warranty terms.

Compare models and applications

Compare 2D cross-line lasers. With green laser: QB Green Set. With 360° planes: 3D cross-line lasers.
