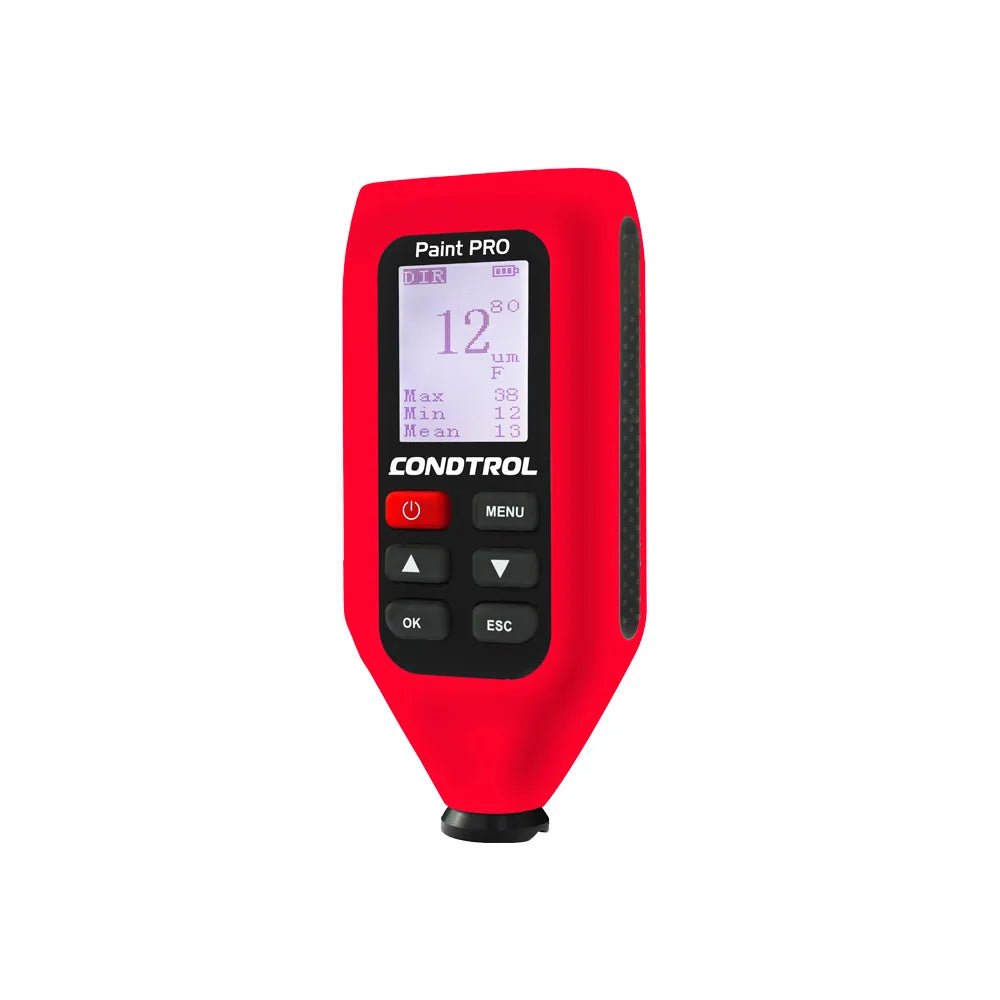

CONDTROL Paint Pro coating thickness gauge
warranty
invoice
returns
in Germany
Comparison
| Paint Pro | ||
|---|---|---|
| Key figures | ||
| Measuring range | 0 … 1500 µm | 0 … 1500 µm |
| Measuring accuracy | ±(3 % + 2 µm) | ±(3 % + 2 µm) |
| Smallest display unit | 1 µm (0–999 µm), 0,01 mm (ab 1000 µm) | 0,1 µm |
| Minimum substrate thickness | >0,5 mm | Metal 0.5 mm, aluminium 0.3 mm |
| Calibration | Zero-point and multi-point calibration | Zero-point and multi-point calibration |
| Functions | ||
| Display | Backlit LCD | 2.0″ TFT, rotatable |
| Memory | 320 values (4 groups × 80) | 256 measurements (8 groups × 32) |
| Auto power-off | After 3 minutes | 30 s / 60 s / 2 min / 5 min |
| Power supply | 2 × 1.5 V AAA | Li-ion battery 3.7 V 700 mAh |
| Operating temperature | 0 … +45 °C | 0 … +40 °C |
| Dimensions | 112 × 51 × 28 mm | 62 × 38 × 145 mm |
| Weight | 80 g | 125 g |
n/a = not specified
In the box
- CONDTROL PaintPro
- Calibration set
- Batteries (AAA)
- micro USB cable
- Operating manual
Technical data
- Measuring range
- 0 … 1500 µm
- Measuring accuracy
- ±(3 % + 2 µm)
- Measuring mode
- Single and continuous measurement
- Memory
- Power supply
- 2 × 1.5 V AAA
- Operating temperature
- 0 … +45 °C
- Storage temperature
- −10 … +50 °C
- Dimensions
- 112 × 51 × 28 mm
- Weight
- 80 g
The CONDTROL Paint Pro non-destructively measures the thickness of paint, lacquer and coatings on ferrous and non-ferrous metals. It combines magnetic induction (steel) and eddy current (e.g. aluminium). Measuring range 0 to 1500 µm, accuracy ±(3% + 2 µm).
What tasks is the Paint Pro suitable for?
On site and in the lab: testing paint, powder, anodised and galvanised coatings in mechanical engineering and the automotive industry. Incoming goods inspection, production monitoring and final inspection of finished parts.
Data transfer
Stored readings can be transferred to a PC via USB cable for test reports and evaluation.
Easy calibration
A calibration set with metal plate and reference foils for calibration and check measurements is included. This keeps the tool reliable even when switching between materials.
Functions at a glance
- Magnetic induction and eddy current in one tool
- Measuring range 0–1500 µm, accuracy ±(3% + 2 µm)
- Single and continuous measurement, reading memory
- USB transfer to PC
- Compact: 112 × 51 × 28 mm, 80 g
Interpreting the result correctly
What is measured is the non-metallic layer on a metallic substrate. The method does not work on plastic, wood or glass. Calibrate on the respective base material before measuring.
Power supply and scope of delivery
2 × AAA batteries.
Paint Pro, calibration set, AAA batteries, micro USB cable, user manual.
Warranty
2 years' warranty; one additional year after registration in accordance with the warranty terms.
Compare models
Compare coating thickness gauges. With automatic substrate detection, limit alarm and statistics: Paint Expert.
