CONDTROL Omniliner G3D Kit Cross-line lasers

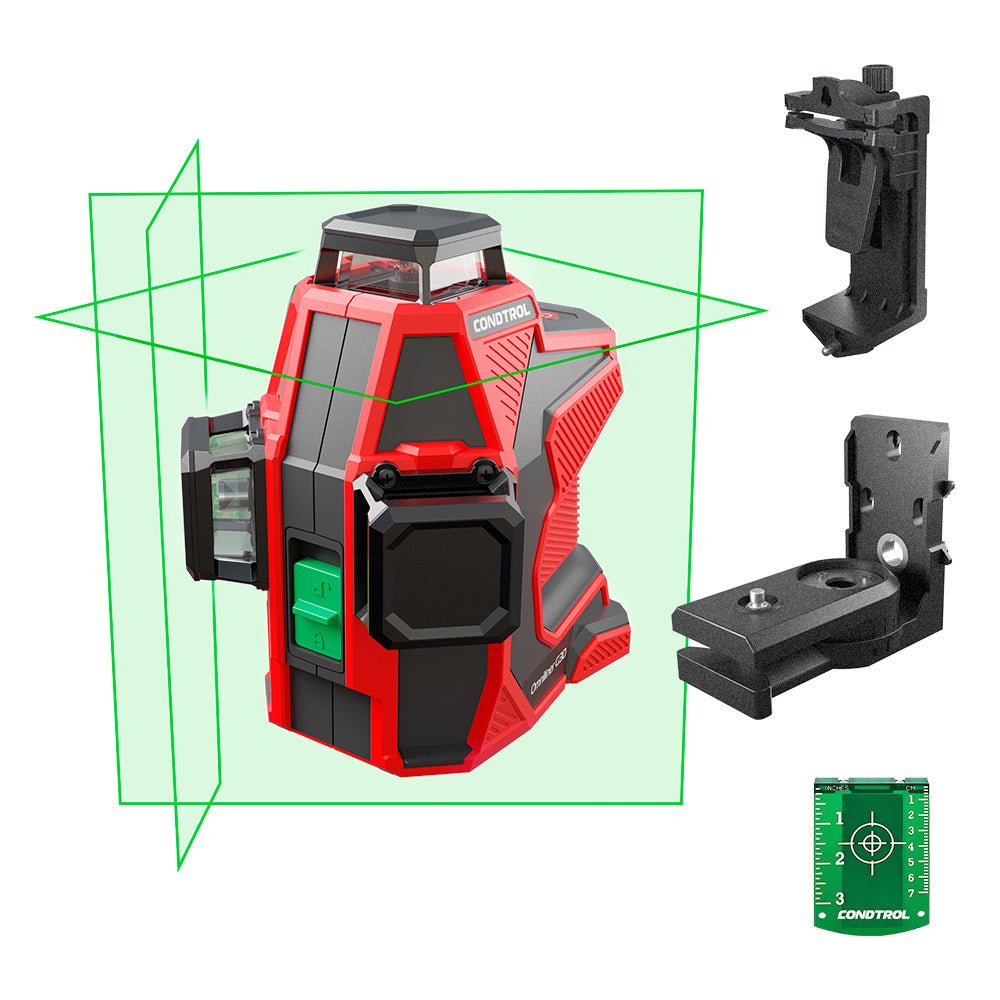

The CONDTROL Omniliner G3D Kit is the green Omniliner G3D 3D cross-line laser as a complete kit: with wall bracket, clamp holder, magnetic target plate, two rechargeable batteries and charger in a case. Three 360° laser planes, self-levelling up to ±4°, accuracy ±0.2 mm/m, Bluetooth control and IP65.

What tasks is the G3D Kit suitable for?

For anyone who uses the laser not only on a tripod: with the wall bracket it sits on profiles or walls at the desired height, and the clamp holder fixes it to pipes, battens and door frames. The magnetic target plate makes the line more visible over longer distances. Typical uses are drywall, suspended ceilings, tiling and installation.

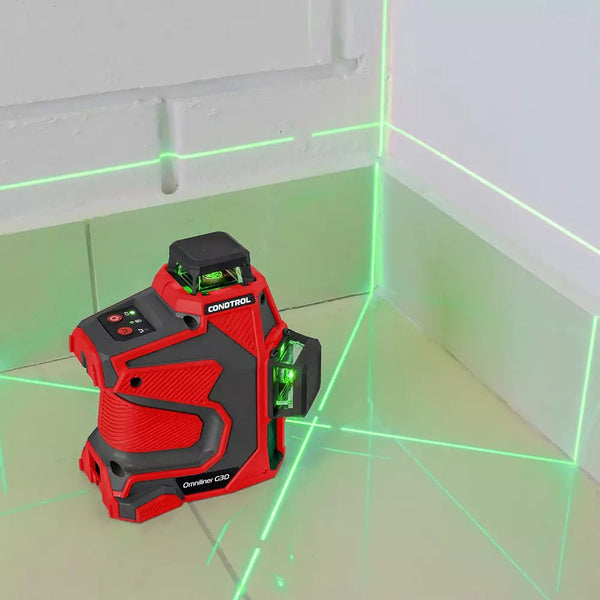

Laser outputs close to wall and corner

The laser emitters are arranged so that the tool can stand directly against the wall or in the corner. This saves auxiliary measurements and material when aligning in hard-to-reach places.

Remote control via app

Via Bluetooth and the free XLiner Remote app, you switch laser planes and brightness from a distance, without walking to the tool and moving it.

Slope and pulse mode

In manual slope mode, the laser projects inclined lines, for example for stairs and roof slopes. In pulse mode, it works with a laser receiver and extends the working range to 100 m, even in bright light and outdoors.

Functions at a glance

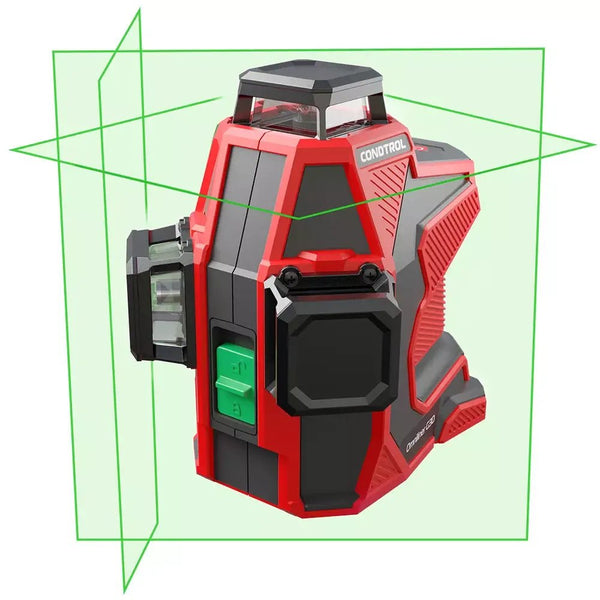

• Three green 360° laser planes, self-levelling ±4°
• Accuracy ±0.2 mm/m, range 50 m, 100 m with receiver
• Bluetooth control via the XLiner Remote app
• Manual slope mode and pulse mode for receiver

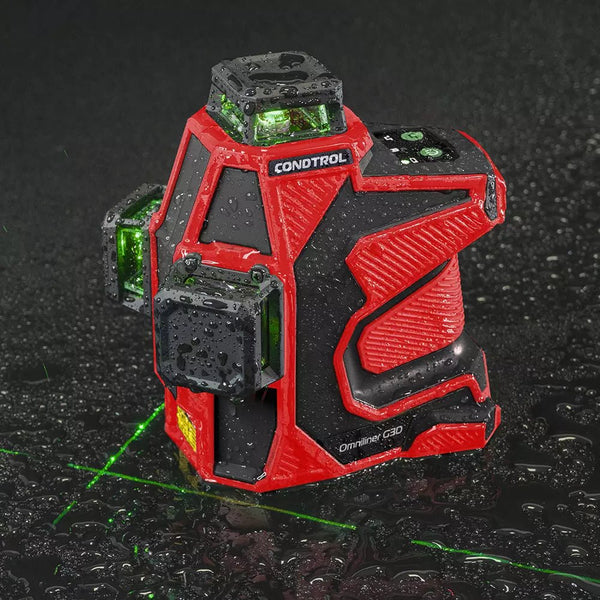

• Metal frame protects the pendulum, ribbed rubber coating against impacts, IP65
• 1/4″ and 5/8″ tripod threads plus eyelet for screw or nail

Understanding range and accuracy

The visibility of the line depends on the ambient light and the surface. In sunlight or over long distances, work in pulse mode with a receiver. The stated accuracy applies within the self-levelling range of ±4°; mount the tool securely.

Power supply and scope of delivery

Two 3.7 V / 5200 mAh Li-ion batteries: while one is charging, you keep working with the second.

Omniliner G3D, wall bracket, clamp holder, magnetic target plate, 2 rechargeable batteries, charger, user manual, case.

Warranty

2 years' warranty; one additional year after registration in accordance with the warranty terms.

Compare models and applications

Compare 3D cross-line lasers. Tool only, with batteries: Omniliner G3D. More kits: cross-line lasers with accessories.
