CONDTROL NEO G220 Set Cross-line lasers
warranty
invoice
returns
in Germany
Goes with it 2
In use
What it can do
Comparison
| NEO G220 | ||
|---|---|---|
| Key figures | ||
| Range / with receiver | 50 m | 50 m |
| Accuracy | ±0,3 mm/m | ±0,3 mm/m |
| Laser lines | horizontal + vertical | horizontal + vertical |
| Laser colour | Green | Green |
| Self-levelling range | ±4,5° | ±4,5° |
| Dust and water protection | IP54 | IP54 |
| Power supply | 3 × AA | 3 × AA |
| Tripod thread | 5/8" and 1/4" | 5/8" and 1/4" |
| Functions | ||
| Receiver mode | ||
| Tilt mode | ||
| Plumb points | ||
| Bluetooth / app | ||
| Remote control | k. A. | k. A. |
| Display | k. A. | k. A. |
| Digital tilt | ||
n/a = not specified

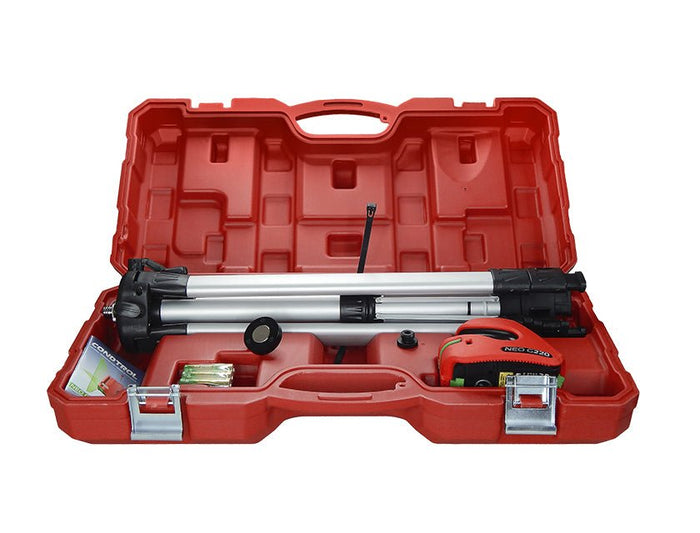

In the box
- CONDTROL NEO G220
- CONDTROL tripod H130
- Magnetic mount
- Adapter from 5/8’’ to 1/4’’
- Fastening strap
- 3 × batteries (AA)
- User manual
- Plastic case
Details
Technical data
- Range / with receiver
- 50 m
- Levelling accuracy
- ±0.3 mm/m
- Self-levelling range
- ± 4.5°
- IP protection
- IP54
- Tripod thread
- 5/8’’, 1/4”
- Laser type
- Class II 520 nm < 1 mW
- Power supply
- 3 × 1.5 V alkaline batteries LR6 (AA)
- Operating temperature
- 0°C ... +50°C
- Storage temperature
- -20°C ... +70°C
- Dimensions
- 120×75×105mm
- Weight
- 0.5 kg
From our guides

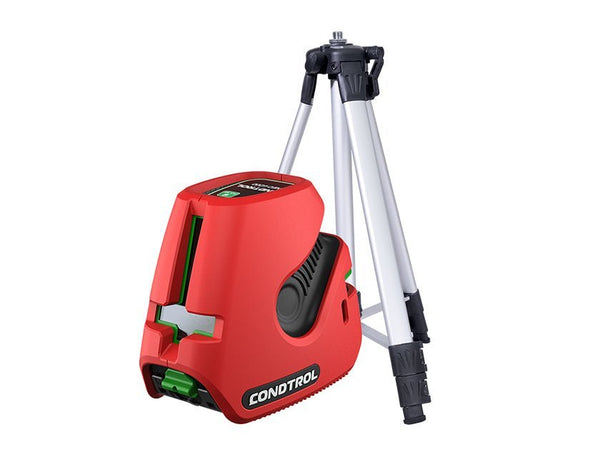

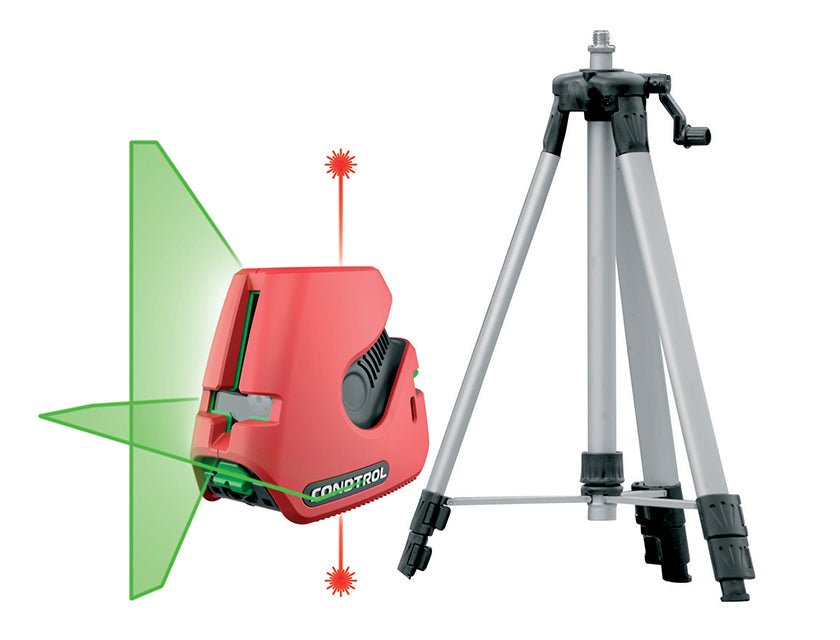

The CONDTROL NEO G220 Set is a green cross-line laser with horizontal and vertical line, supplied with H130 tripod, magnetic holder, thread adapter and fastening strap in a plastic case. Accuracy ±0.3 mm/m, self-levelling up to ±4.5°, range with receiver 50 m, IP54.
What tasks is the NEO G220 suitable for?
Alignment in interior finishing, tiling, wallpapering, furniture and kitchen installation, drywall. With the accessories from the kit, you can mount the laser almost anywhere:

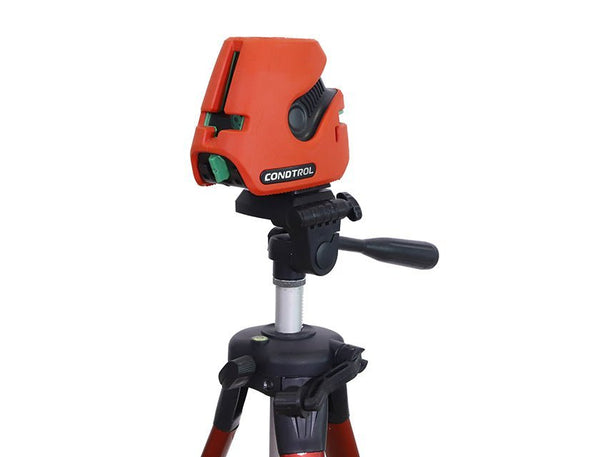

- on tripods with 1/4″ and 5/8″ thread
- with a clip on profiles

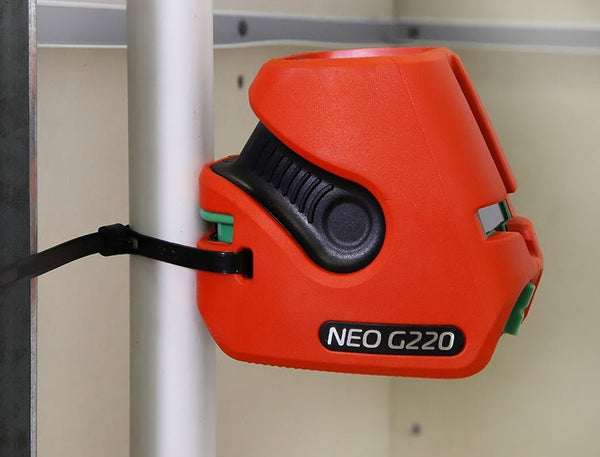

- with a strap on vertical profiles or columns
- on a nail or screw

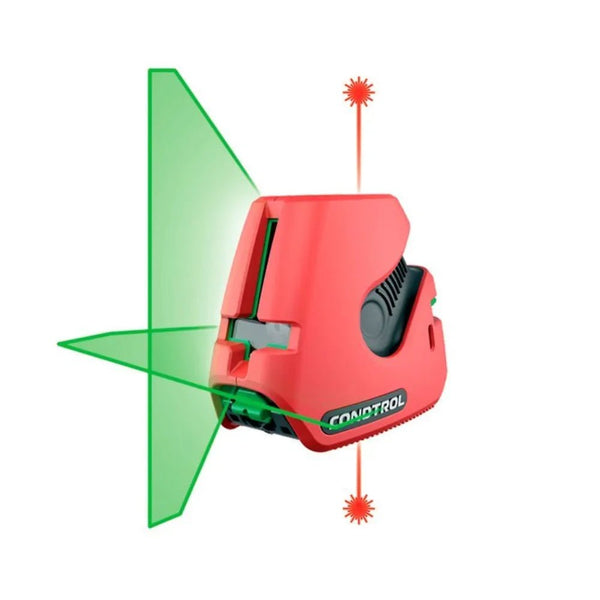

Switch lines individually
The horizontal and vertical lines can be switched on separately. If you only need one line, the batteries last correspondingly longer.
Robust and protected
Rubber coatings on the sides protect the housing from damage, dust, dirt and splash water (IP54).
Functions at a glance
- Green horizontal and vertical line (520 nm)
- Accuracy ±0.3 mm/m, self-levelling ±4.5°
- Work with receiver up to 50 m
- Lines switchable individually, IP54
Understanding range and visibility
The green line looks brighter to the eye than a red one. In direct sunlight and over long distances, work with a receiver. The accuracy applies within the self-levelling range of ±4.5°.
Power supply and scope of delivery
3 × AA batteries (LR6).
NEO G220, H130 tripod, magnetic holder, 5/8″ to 1/4″ adapter, fastening strap, 3 AA batteries, plastic case, user manual.
Warranty
2 years' warranty; one additional year after registration in accordance with the warranty terms.
Compare models and applications
Compare cross-line laser kits. Without tripod and case: NEO G200. Matching receiver: ULR.
