CONDTROL Maxwell 3 IR thermometers
warranty
invoice
returns
in Germany
Comparison
| Maxwell 3 | ||
|---|---|---|
| Key figures | ||
| Surface temperature range | −30 °C … +380 °C | −50 °C … +350 °C |
| Measuring accuracy | −30…0 °C: ±3 °C; 0…380 °C: ±(1,5 % + 2 °C) | −50 … 0 °C: ±3 °C; 0 … +350 °C: ±2 % or ±2 °C |
| Optical resolution | 12:1 | 12:1 |
| Emissivity | 0.1 … 1.0 adjustable | 0,1 … 1,0 |
| Response time | < 0.5 s | <0.5 s |
| Spectral sensitivity | 8 … 14 µm | 8–14 µm |
| Functions | ||
| Ambient temperature | k. A. | k. A. |
| Dew point measurement | k. A. | k. A. |
| Relative humidity | k. A. | k. A. |
| Laser | Class II, 630–670 nm, <1 mW | Class II, 630–670 nm, < 1 mW |
| Auto power-off | after 30 s | After 60 seconds |
| Power supply | 2 × 1.5 V AAA alkaline | 2 × 1.5 V AAA alkaline |
| Operating temperature | 0 … +40 °C | 0 … +40 °C |
| Dimensions | 148 × 102 × 46 mm | 148 × 83 × 35 mm |
| Weight | 130 g | 120 g |
n/a = not specified
In the box
- CONDTROL Maxwell 3
- Batteries
- User manual
Technical data
- Surface temperature range
- −30 °C … +380 °C
- Measuring accuracy (low range)
- −30…0 °C: ±3 °C
- Measuring accuracy
- 0…380 °C: ±(1.5 % + 2 °C)
- Optical resolution
- 12:1
- Emissivity
- 0.1 … 1.0 adjustable
- Response time
- < 0.5 s
- Spectral sensitivity
- 8 … 14 µm
- Auto power-off
- after 30 s
- Power supply
- 2 × 1.5 V AAA alkaline
- Operating temperature
- 0 … +40 °C
- Storage temperature
- −10 … +60 °C
- Dimensions
- 148 × 102 × 46 mm
- Weight
- 130 g

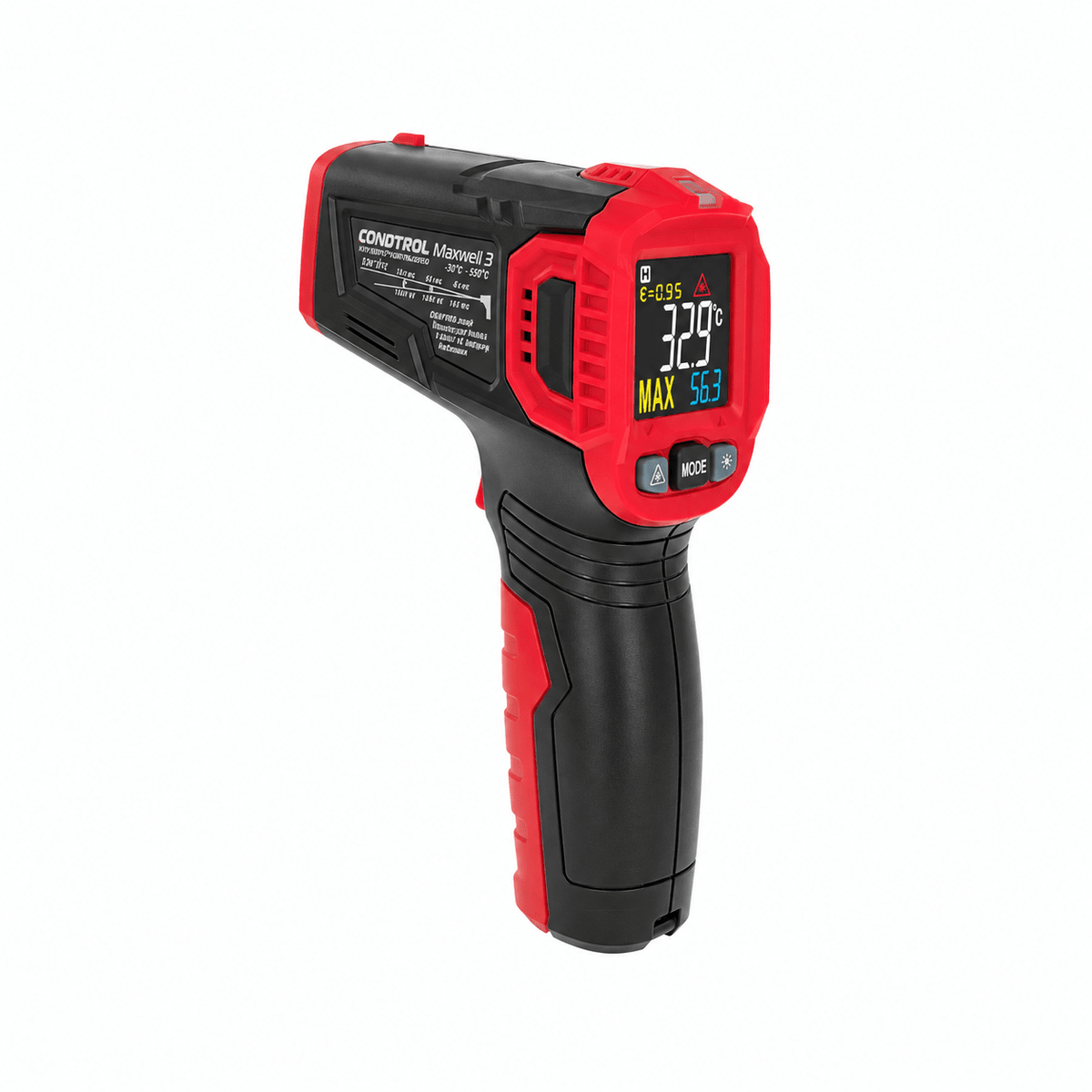

The CONDTROL Maxwell 3 is an infrared pyrometer for quickly and safely detecting heat loss, cold bridges, leaks and blockages in heating systems and for monitoring overheating of moving parts in vehicles and machines. With a temperature range of –30 °C to 380 °C, the tool is versatile and particularly user-friendly.
Safe temperature monitoring
The 12:1 optical ratio lets you measure temperatures from a safe distance, ideal for hot or live objects. Results are shown on a clearly readable display with large digits, and a backlight ensures good visibility in poor light.
Precise aiming with circle sight
The Maxwell 3 has a laser circle sight that shows the measuring zone exactly and minimises user errors. For short distances, the sight can be switched off to extend battery life.
Comfortable and handy
The ergonomic design and low weight of only 130 g make the Maxwell 3 ideal for longer measurements. The tool can be conveniently attached to your belt to keep your hands free for other tasks.
Monitoring critical zones
A warning signal indicates when the measured temperature rises above the set limits, enabling a quick response to overheating and deviations in hard-to-reach areas such as control cabinets, air conditioners or boilers.
Main functions of the CONDTROL Maxwell 3
• Laser target indicator for precise aiming
• Easy-to-read display with large symbols
• One-handed operation for easy handling
• Warning signal when temperature is exceeded
• Adjustable emissivity for different surfaces
The CONDTROL Maxwell 3 is the best choice for diagnostic work on heating and electrical systems, for checking heating and cooling systems and for hard-to-reach areas. It is used in energy, construction, metallurgy, mechanical engineering and at home.
Category: Pyrometers, IR thermometers
€55,00
From the field
Your work.
Your experience.
What matters shows on the job.
Experiences with the CONDTROL Maxwell 3 pyrometer.
No reviews yet. Be the first to share your experience.
